MANAGING SWITCH
55
Port Settings
The Port Settings page allows you to define the outer PVID and outer mode for a selected
port.
To access this page, click L2 Switching > Q-in-Q > Port Settings.

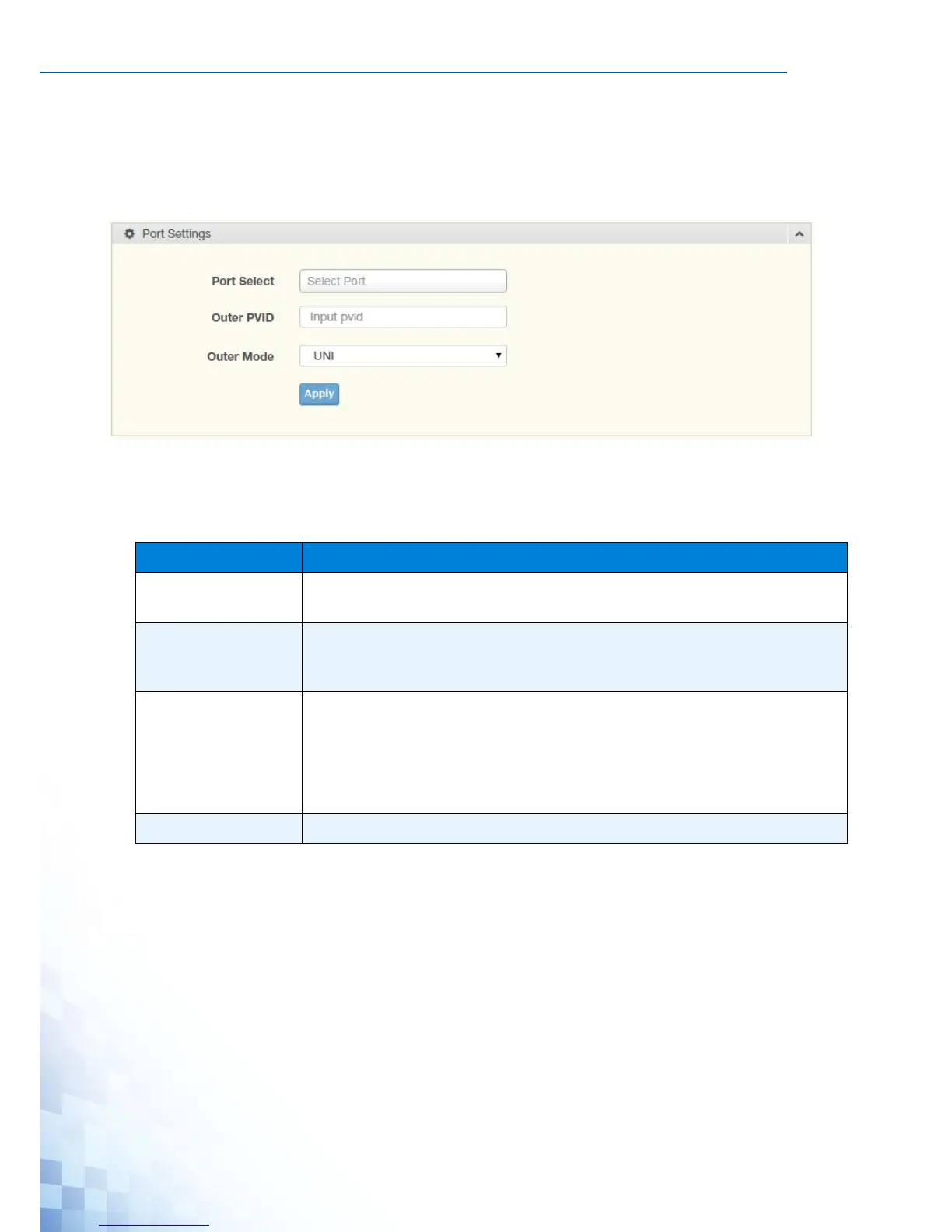

Figure 4-26. L2 Switching > Q-in-Q > Port Settings
The following table describes the items in the previous figure.
The ensuing table for QinQ Port Information settings are informational only: Port, Outer
PVID and Outer Mode.
Table 4-24. L2 Switching > Q-in-Q > Port Settings
Item Description
Port Select Enter the switch port (part of VLAN configuration) to configure the selection
as a tunnel port.
Outer PVID Enter the Port VLAN ID (PVID) to assigned the native VLAN ID. All
untagged traffic coming in or out of the 802.1Q port is forwarded based on
the PVID value
Outer Mode Click the drop-down menu to select between UNI or NNI role.
UNI: Selects a user-network interface which specifies communication
between the specified user and a specified network.
NNI: Selects a network-to-network interface which specifies
communication between two specified networks.
Apply Click Apply to save the values and update the screen.
