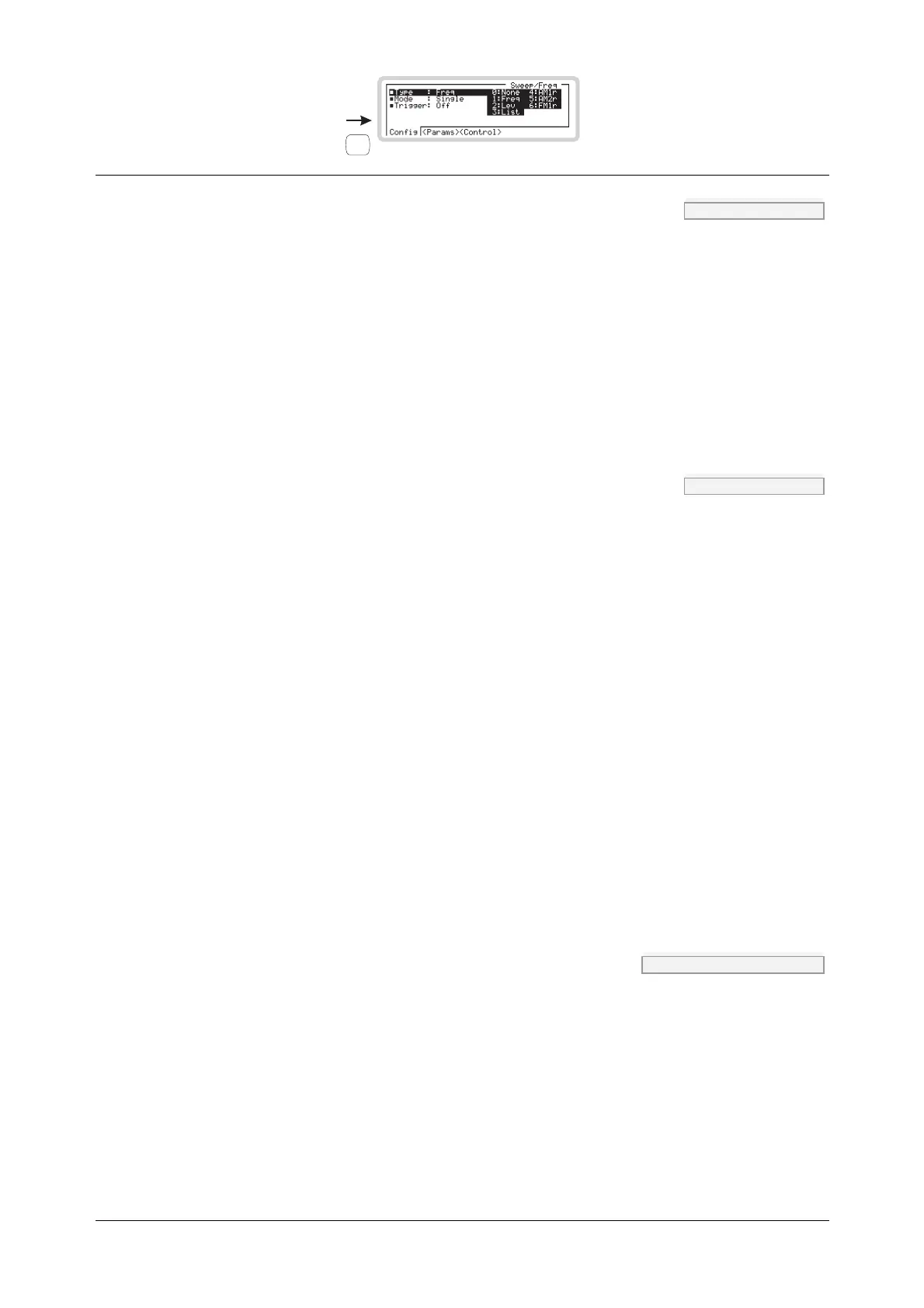

LOCAL OPERATION SWEEP
SWEEP
B5794
3-110
Mode SWE:OPER page 4-158
Use the numeric keypad to specify the sweep mode:
0 Single Single sweep. The sweep steps from the start value to the stop value and
halts, displaying the stop value.
1 Continuous Continuous sweep. The sweep steps from the start value to the stop value,
and then repeats.
Trigger SWE:TRIG page 4-159
Use the numeric keypad to specify the external trigger mode:
0 Off External trigger is disabled. Control the triggering manually using the
sweep control screen of Fig. 3-80.
1 Start The trigger starts the sweep. At the end of the sweep the trigger latch
resets, ready for the next input. During the sweep, trigger inputs are
ignored.
2 Start/Stop The first trigger starts the sweep, the next trigger pauses it. A further
trigger causes the sweep to resume from the point at which it paused. The
trigger latch resets after each start/stop.
3 Step Each trigger increments the sweep by the size of the frequency/level step.
The trigger latch resets after each step.
The trigger input has a pull-up resistor, so a switch closure is treated as a trigger event.
Note: You can always control the sweep from the front panel, regardless of the trigger mode.
Slope SWE:TRIG:SLOP page 4-159
This menu entry appears on the screen except when the selected trigger mode is Off.
Use the numeric keypad to specify the edge of the trigger pulse on which the sweep starts:
0 Positive Trigger sweep on positive-going edge of trigger pulse.
1 Negative Trigger sweep on negative-going edge of trigger pulse.
