Installation and Configuration Ensemble Epaq Hardware Manual
2.3.7. Analog Input 0
Analog Input 0 is a 16-bit differential input that accepts a voltage in the range of ±10 volts with a resolution of
305 µVolts. Signals outside of this range may damage the input. To interface to a single-ended (non-
differential) voltage source, connect the signal common of the source to the negative input (pin 8, AIN 0-) and
the analog source signal to the positive input (pin 19, AIN 0+). A floating signal source should be referenced
to the signal common (pin 20, AGND) as shown in Figure 2-27.
Table 2-17: Analog Input0 Pin Assignment
Pin# Description In/Out/Bi
8 Analog Input 0 - Input
19 Analog Input 0 + Input
20 Signal Common for Limit Switches N/A
ANALOG IN+
PIN-19
100 64.9K
64.9K
.1
.001
.001
OP279
+
-
+
SIGNAL
SOURCE
SHIELDED
CABLE
-
16.2K
16.2K
100
ANALOG IN-
PIN-8
AGND
PIN-20

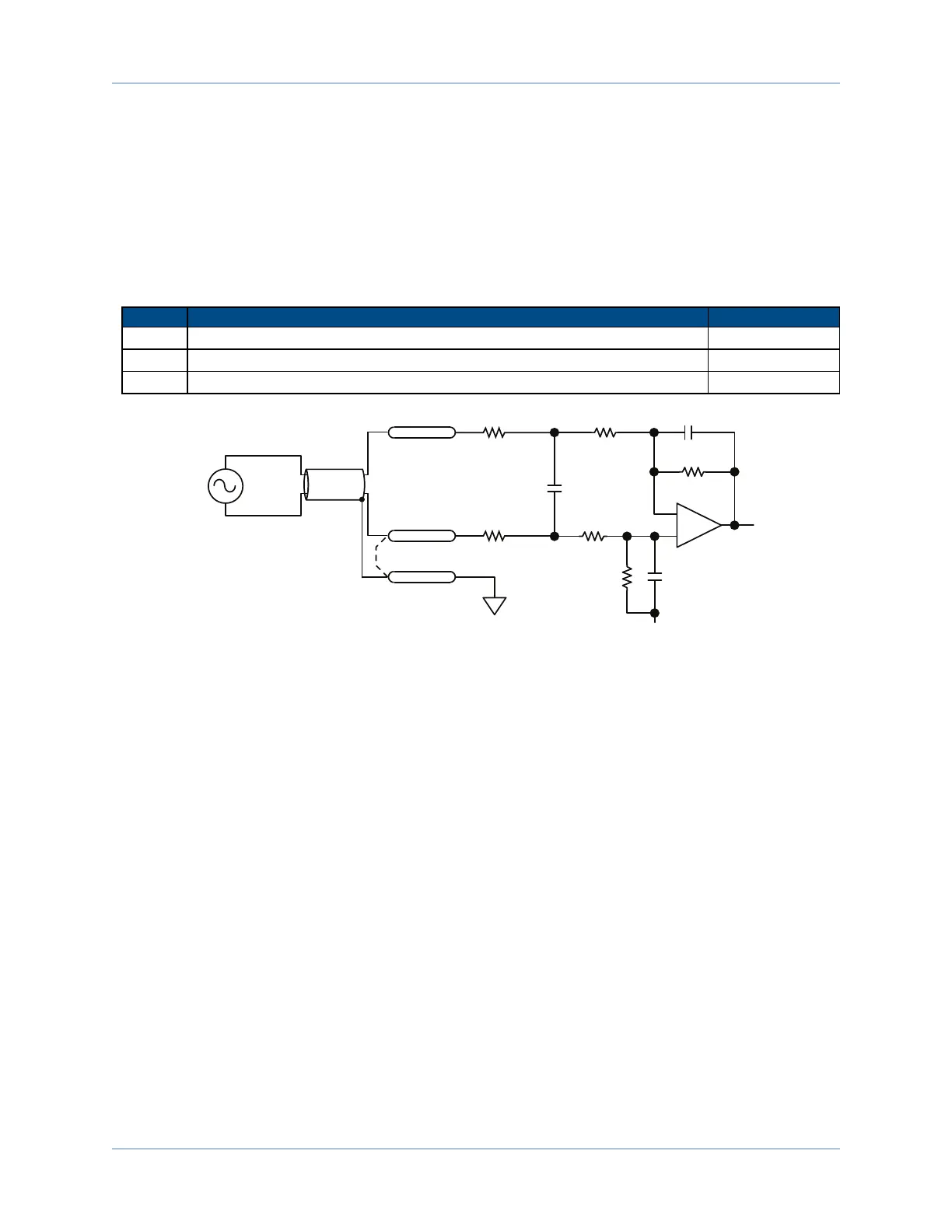

Figure 2-27: Analog Input 0
www.aerotech.com Chapter 2 47
