Installation and Configuration Ensemble Epaq Hardware Manual
2.3.5. Encoder Fault Interface
The encoder fault input is used with encoders having a fault output. Each manufacturer uses this signal to
indicate different faults.
Table 2-15: Encoder Fault Interface Pin Assignment
Pin# Description In/Out/Bi
23 Encoder Fault Input Input
ENC+5V
ENCFLT
PIN-23
10K
1K
.001
.01UF

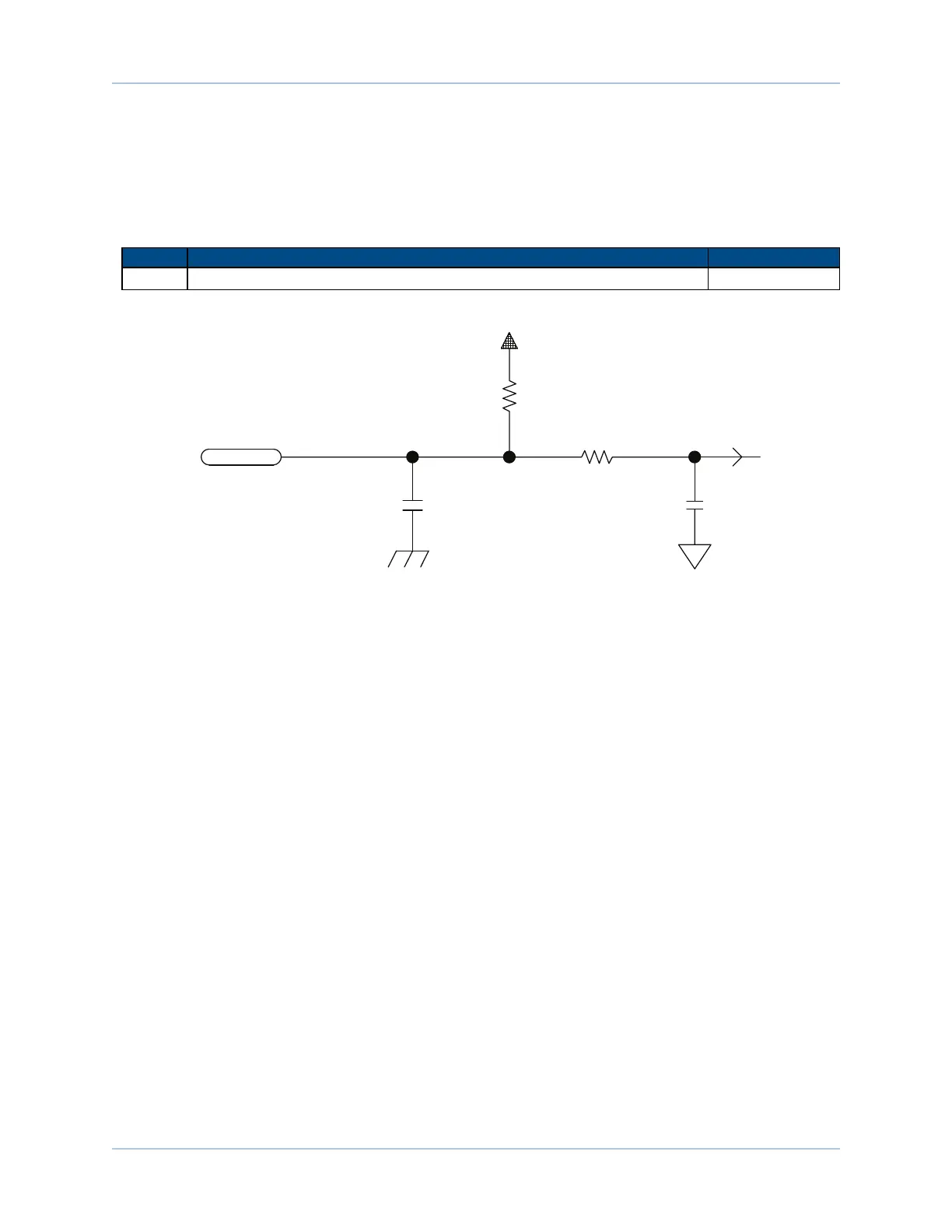

Figure 2-26: Encoder Fault Interface Input
www.aerotech.com Chapter 2 45
