2.3.4. End Of Travel Limit Input Interface
End of Travel (EOT) limits are required to define the end of the physical travel on linear axes. Positive or
clockwise motion is stopped by the clockwise (CW) end of travel limit input. Negative or counterclockwise
motion is stopped by the counterclockwise (CCW) end of travel limit input. The Home Limit switch can be
parameter configured for use during the home cycle, however, the CW or CCW EOT limit is typically used
instead. All of the end-of-travel limit inputs accept 5-24 VDC level signals. Limit directions are relative to the
encoder polarity in the diagnostics display (refer to Figure 2-23).
The active state of the EOT limits is software selectable (by the EndOfTravelLimitSetup
1
axis parameter).
24
20
22
May be a
separate switch.
Normally closed shown (typical).
12
16
CCW
Limit Com
Home
CW
+5V
FEEDBACK
1
13
14
25

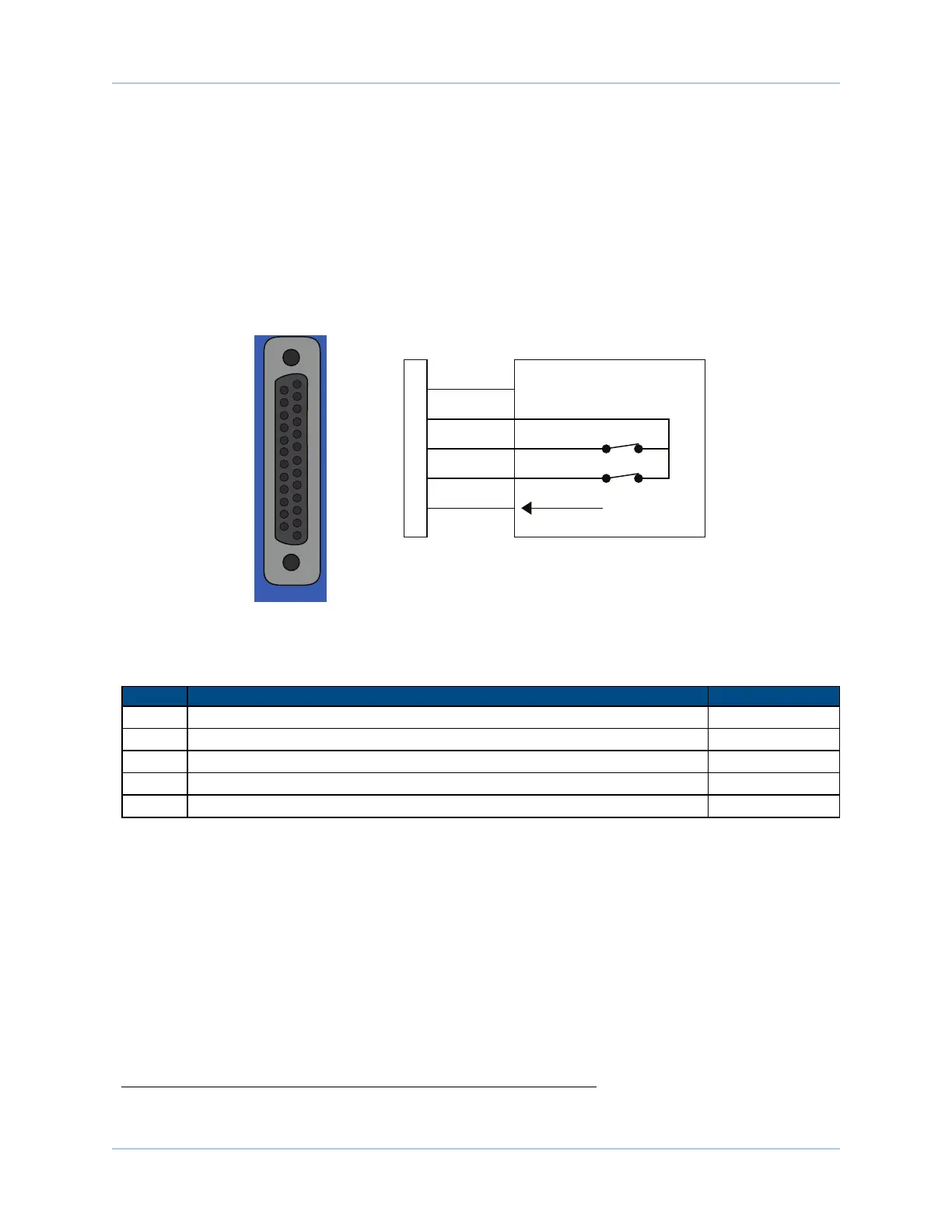

Figure 2-23: End of Travel Limit Input Connections
Table 2-14: End of Travel Limit Input Interface Pin Assignment
Pin# Description In/Out/Bi
12 Clockwise End of Travel Limit Input
16 +5V Power for Limit Switches (500 mAmax) Output
20 Signal Common for Limit Switches N/A
22 Home Switch Input Input
24 Counterclockwise End of Travel Limit Input
1
EndofTravelLimitSetup has replaced LimitLevelMask in software version 3.00.000.
