Chapter 9: Site Preparation – Receiving and Moving Instructions: Uncrating The System

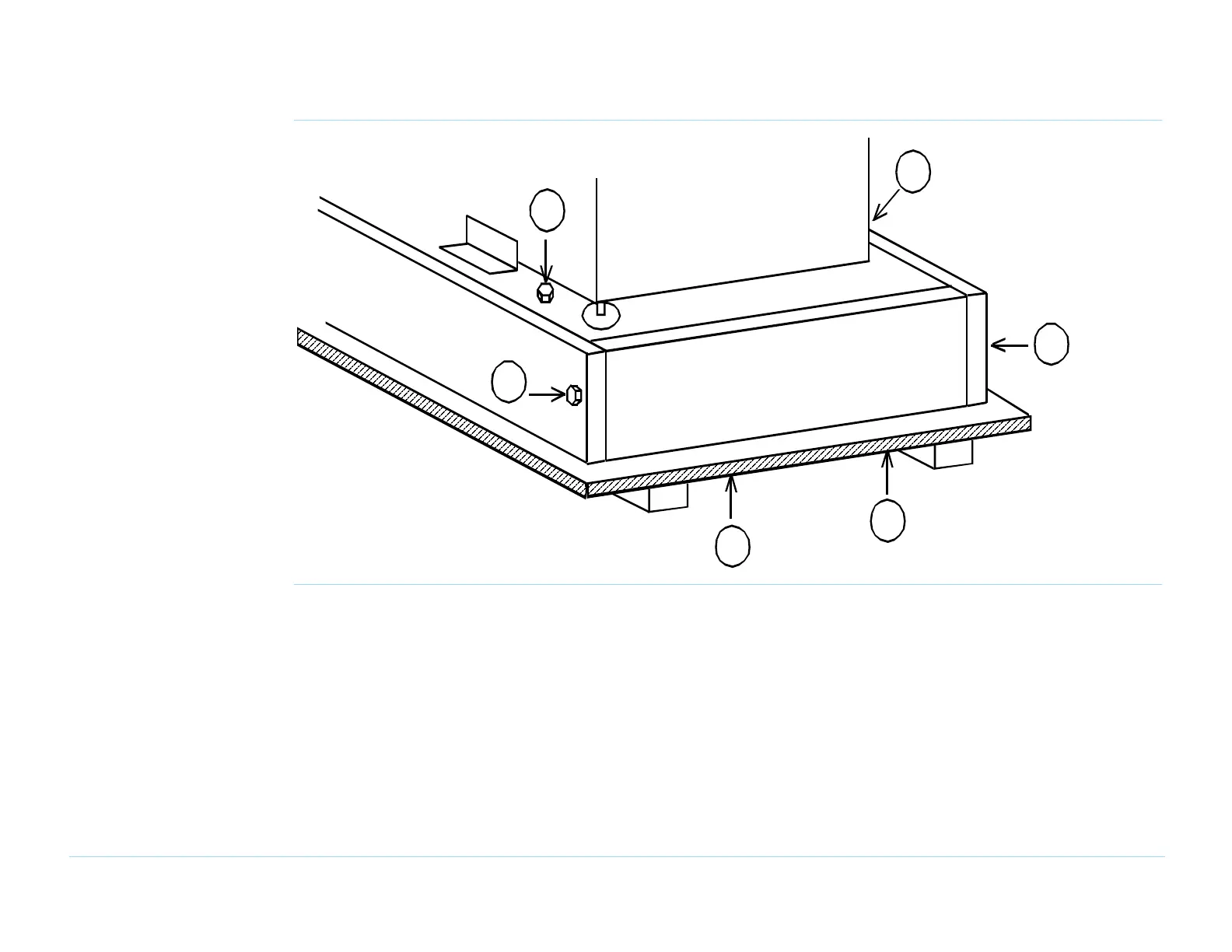

Figure 9-3 Removing the bolts from the end board
4 Figure 9-4: Using a cordless drill with hex power
shank and 3/4-inch socket, screw the bolts from
step
2 into the nuts on the shipping brackets on the end of
the pallet from which you removed the end board.
Screw the bolts down (clockwise) until the platform
rises slightly.
5 Figure 9-4: Remove two foam blocks from the space
between the platform and pallet.
6 Figure 9-4: After removing the foam blocks, screw
the 6-inch bolts up (counter-clockwise) to lower the
platform all the way down onto the pallet.
Alternately lower each side a little at a time. Then
remove the 6-inch bolts.
Testhead
Remove 6 Bolts
UNCRAT1.WP
G
1
2
4
3
5
6
Removable End
