© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 9-10
Chapter 9: Site Preparation – Receiving and Moving Instructions: Uncrating The System

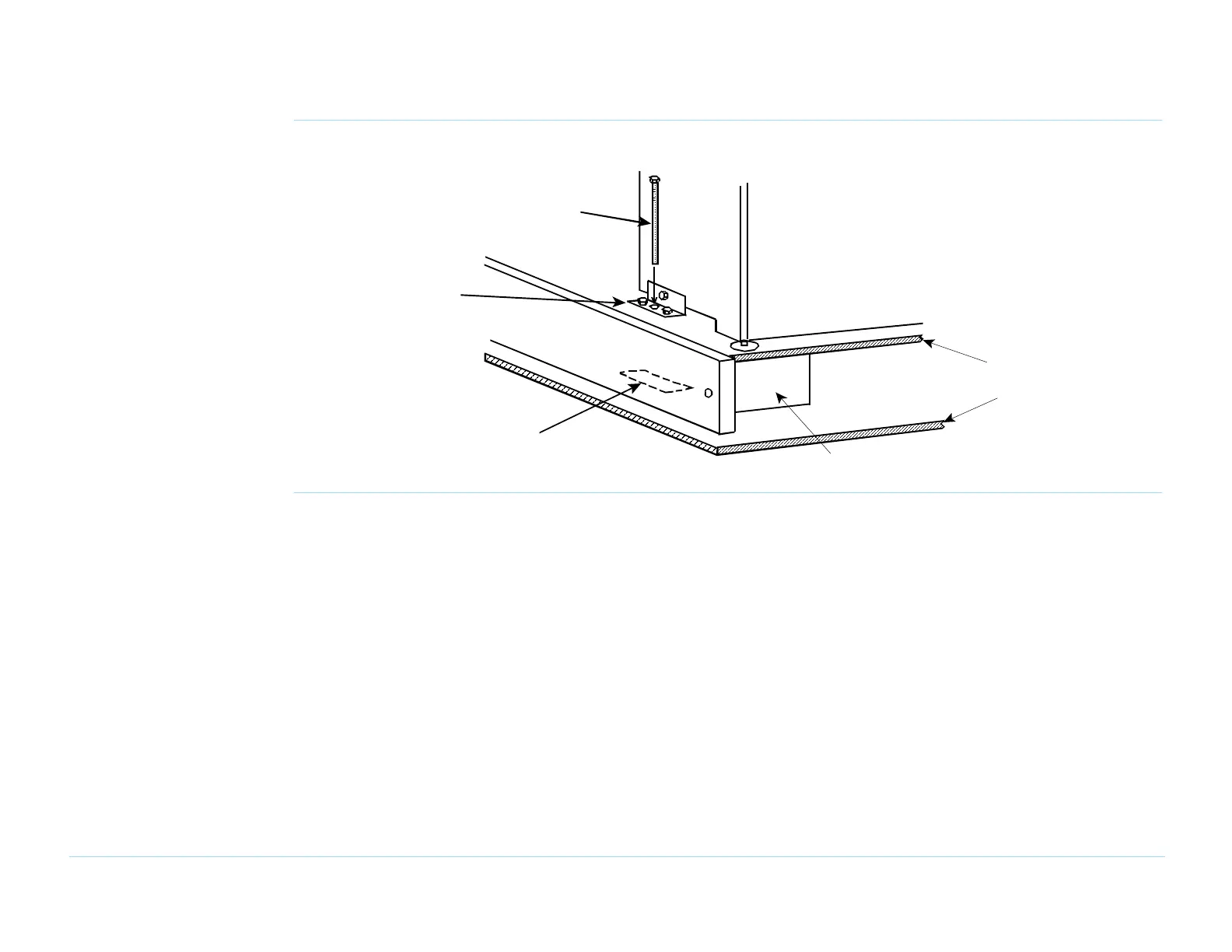

Figure 9-4 Raising and lowering the platform
7 Figure 9-5: Place the ramp on the pallet. Ensure that
the feet under the ramp are folded down to the floor.
Place two bolts that you removed from the sides of
the pallet in
step 3 through the holes in the ramp to
keep the ramp from sliding off the pallet.
Testhead
UNCRAT2.WPG
Platform
Pallet
Foam Block
Shipping
Bracket
contacts a metal plate
on the pallet.
Note: The 6-inch bolt
6-inch bolt Use cordless
drill, extension power shank
and 3/4-inch impact socket
or 3/4-inch wrench
