Agilent Technologies 3070 Series User Manual

© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 9-14
Chapter 9: Site Preparation – Receiving and Moving Instructions: Uncrating The System

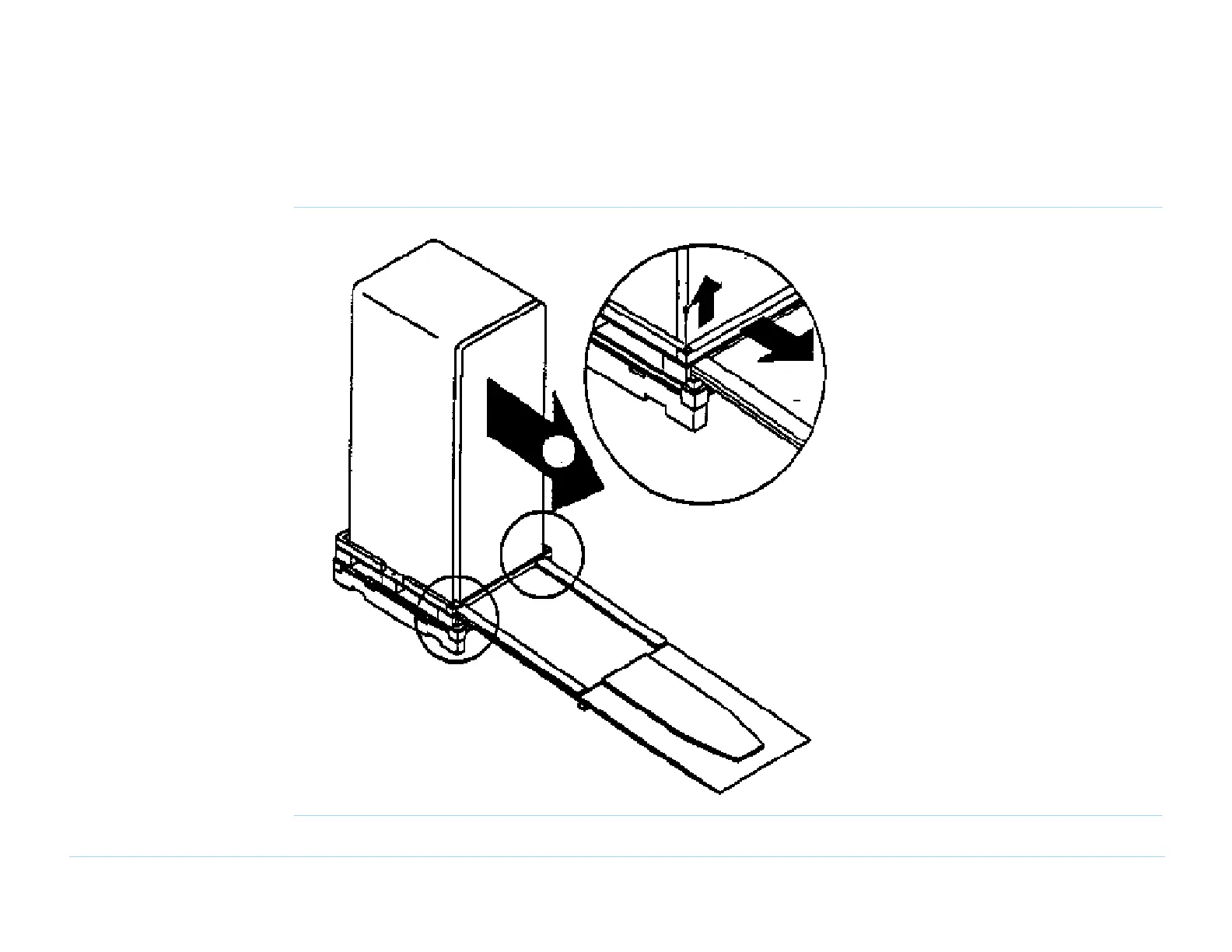

3 Figure 9-7: Remove the two bolts from each corner
(1) and pull the block out from under the bay (2).
Position the ramp so the block of wood under the
ramp locks into the edge of the pallet. Then roll the
bay down the ramp (3).
Figure 9-7 Installing the ramp
