© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-8
Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2001)
327X 79000 317X 307X
Testhead
Support Bay xDSL/POTS
Bay
Opts/Current
Single-Phase
Non-Earthed
AWX 200 19 20 24 24 15 AWY, 16
0EB 220 19 20 24 24 15 0E3, 14
0EJ 230 19 20 24 24 15 0EG, 14
0EC 240 19 20 24 24 15 0EH, 14
Single-Phase
Center-Tap Neutral
AWY 100 / 200 19 20 24 24 15 16
0E3 110 / 220 19 20 24 24 15 14
0EG 115 / 230 19 20 24 24 15 14
0EH 120 / 240 19 20 24 24 15 14
1. Calculated with a fully-loaded 3X7X system with 3 STC cards in every module.
2. DUT Power supplies are configured for 200-240 volts ac.
3. POTS and xDSL bays always require a separate power drop. Use the POTS/xDSL power option that is on the same line as the system power option.

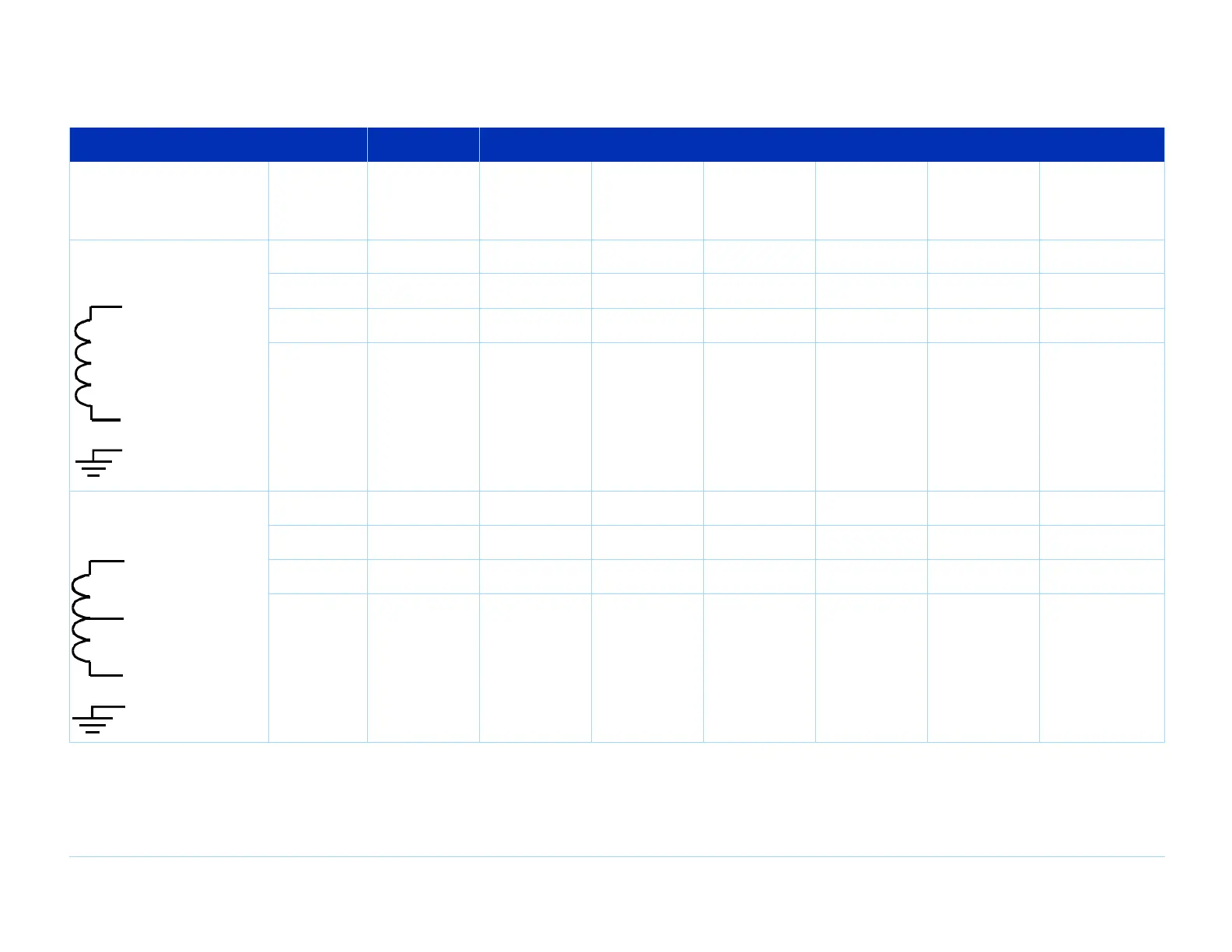

Table 10-2 Series 3 and 79000 family power requirements (single-phase power) (continued)
E1135C Power Option Voltage Full-Load Amps (FLA)
1
for:
2
L1
L2
G
L1
L2
G
N
To Next Page
