© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-7
Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2001)

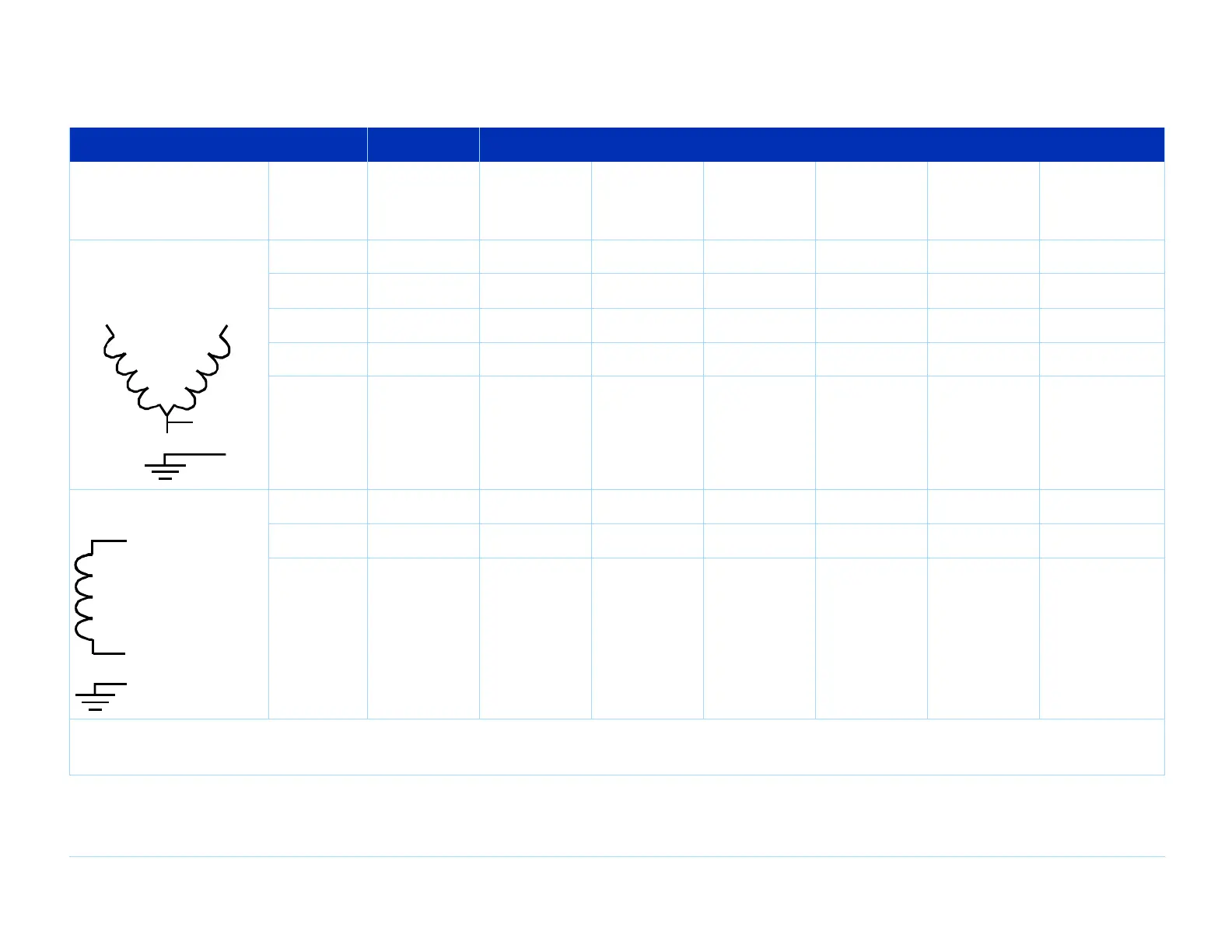

Table 10-2 Series 3 and 79000 family power requirements (single-phase power)
E1135C Power Option Voltage Full-Load Amps (FLA)
1
for:
2
327X 79000 317X 307X
Testhead
Support Bay xDSL/POTS
Bay
3
Opts/Current
Single-Phase Wye w/
Neutral
AWV 120 / 208 17 19 20 24 15 AWY, 16
AWZ 127 / 220 17 19 20 24 15 AWZ, 16
05B 220 / 380 11 10 12 22 NA 05M, 14
05G 230 / 400 11 10 12 22 NA 05F, 14
05K 240 / 415 11 10 12 22 NA 05J, 14
Single-Phase Earthed 05M 220 19 20 24 24 15 14
05F 230 19 20 24 24 15 14
05J 240 19 20 24 24 15 14
L1 L2
G
N
L1
N
G
