Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2001)

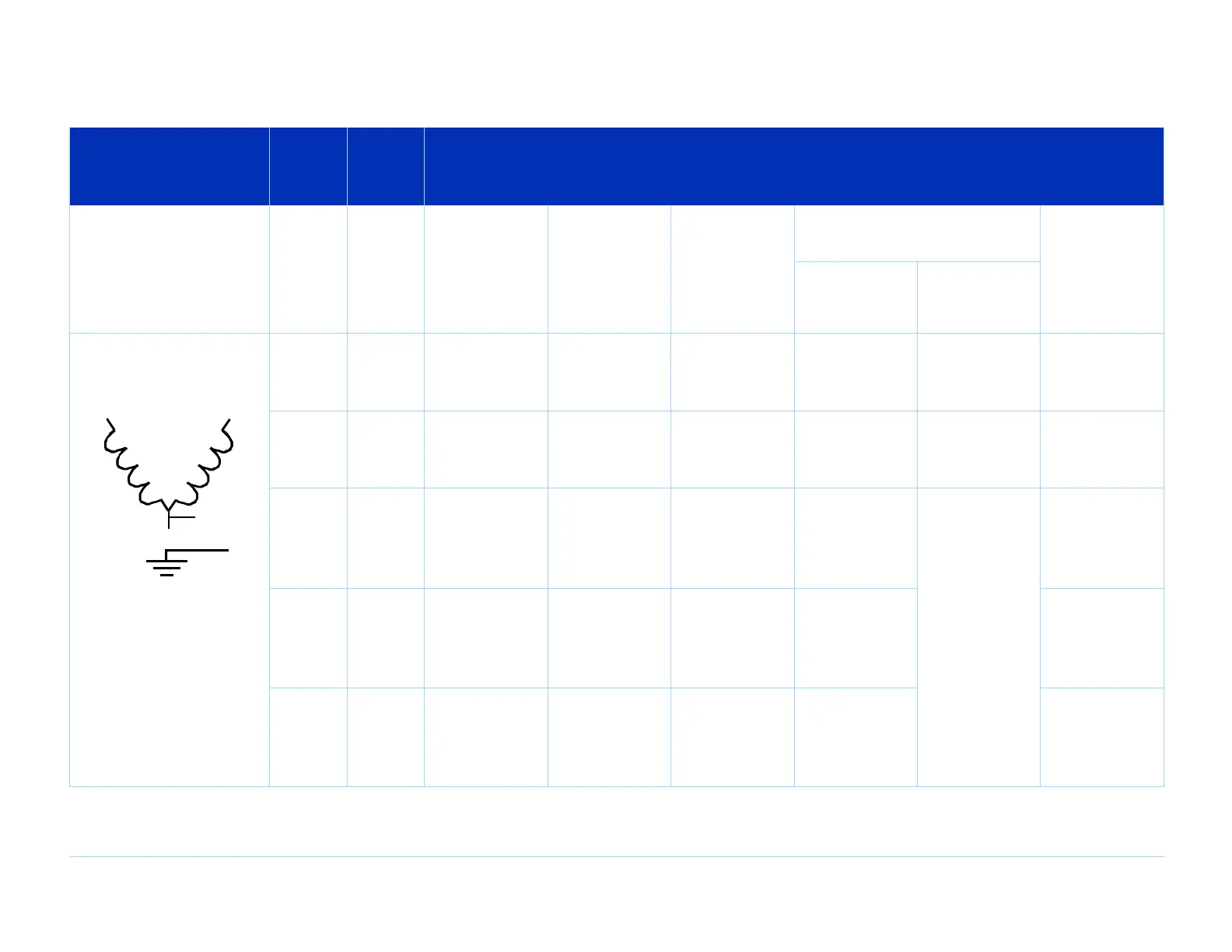

Table 10-4 Series 3 and 79000 family wiring diagram (single-phase power)
E1135C
Power
Option Voltage Testhead
327X outlet
locations
Figure 10-2 on
page 10-17
79000 outlet
locations
Figure 10-13
on page 10-28
317X outlet
locations
Figure 10-24
on page 10-39
307X outlet locations Figure
10-45 on page 10-60
xDSL/POTS
Bay
1
Opts/Current
Figure 10-52
on page 10-68Testhead Support Bay
Single-Phase Wye w/
Neutral
AWV 120 /
208
Figure 10-7 on
page 10-22
Figure 10-18
on page 10-33
Figure 10-29
on page 10-44
Figure 10-46
on page 10-61
Figure 10-48
on page 10-63
AWV, Figure
10-58 on
page 10-74
AWZ 127 /
220
Figure 10-7 on
page 10-22
Figure 10-18
on page 10-33
Figure 10-29
on page 10-44
Figure 10-46
on page 10-61
Figure 10-48
on page 10-63
AWZ, Figure
10-58 on
page 10-74
05B 220 /
380
Figure 10-9 on
page 10-24
Figure 10-20
on page 10-35
Figure 10-31
on page 10-46
Figure 10-42
on page 10-57,
Figure 10-44
on page 10-59
05M, Figure
10-60 on
page 10-76
05G 230 /
400
Figure 10-9 on
page 10-24
Figure 10-20
on page 10-35
Figure 10-31
on page 10-46
Figure 10-42
on page 10-57,
Figure 10-44
on page 10-59
05F, Figure
10-60 on
page 10-76
05K 240 /
415
Figure 10-9 on
page 10-24
Figure 10-20
on page 10-35
Figure 10-31
on page 10-46
Figure 10-42
on page 10-57,
Figure 10-44
on page 10-59
05J, Figure
10-60 on
page 10-76
L1 L2
G
N
