Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2000)
Single-Phase Earthed 05M 220 Table 10-17 on page 10-100 Figure 10-67 on page 10-107
05F 230 Table 10-17 on page 10-100 Figure 10-67 on page 10-107
05J 240 Table 10-17 on page 10-100 Figure 10-67 on page 10-107
Single-Phase
Non-Earthed
AWX 200 Table 10-17 on page 10-100 Figure 10-68 on page 10-108
0EB 220 Table 10-17 on page 10-100 Figure 10-68 on page 10-108
0EJ 230 Table 10-17 on page 10-100 Figure 10-68 on page 10-108
0EC 240 Table 10-17 on page 10-100 Figure 10-68 on page 10-108

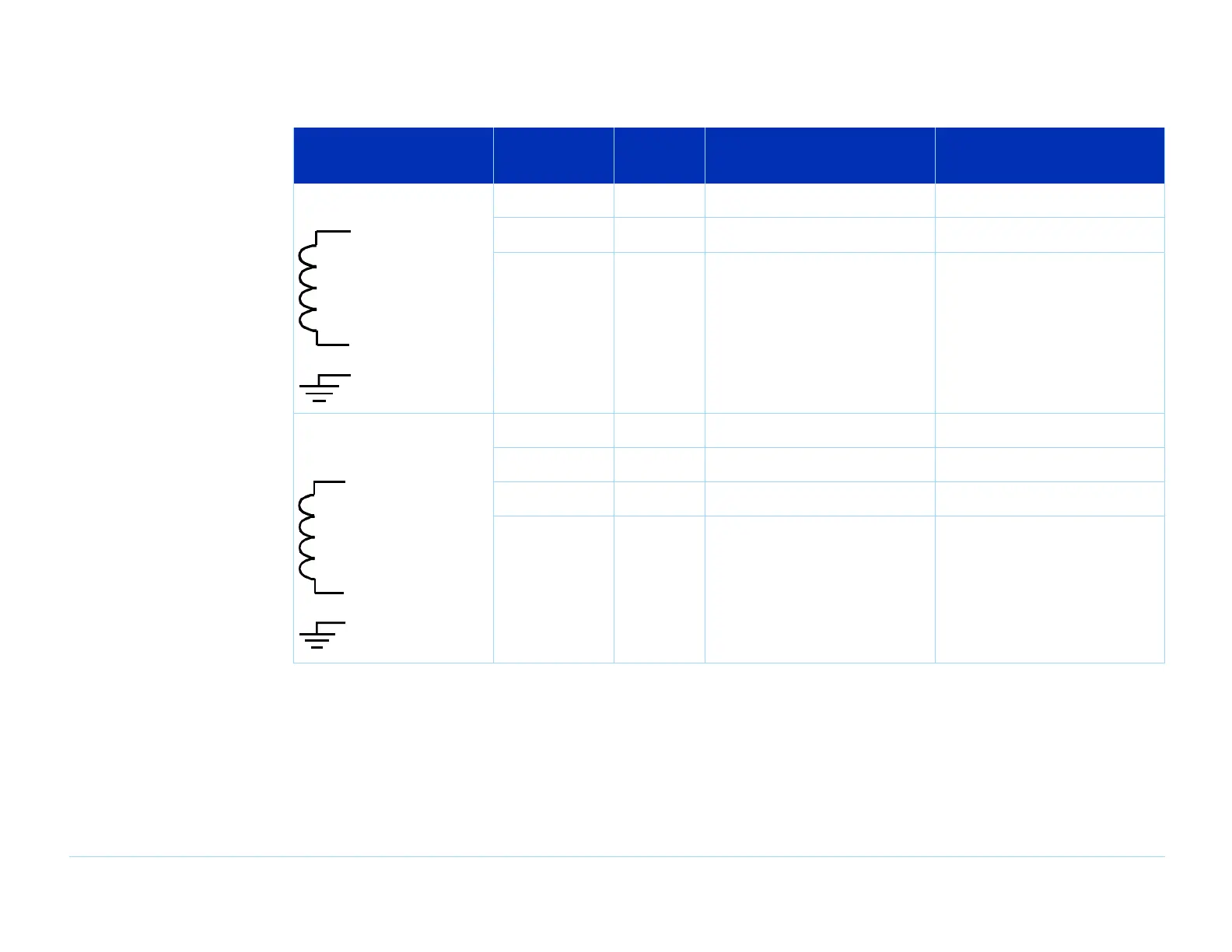

Table 10-11 Series 3 and 79000 cross-reference tables (single-phase) (continued)
Description
E1135C
Power Option Voltage
Wire and Breaker Size Table
Number Wiring Diagram
L1
N
G
L1
L2
G
