Agilent Technologies 3070 Series User Manual

© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-130
Chapter 10: Site Preparation – Power Requirements for Older Systems: Tester Power Requirements (Series I/II)

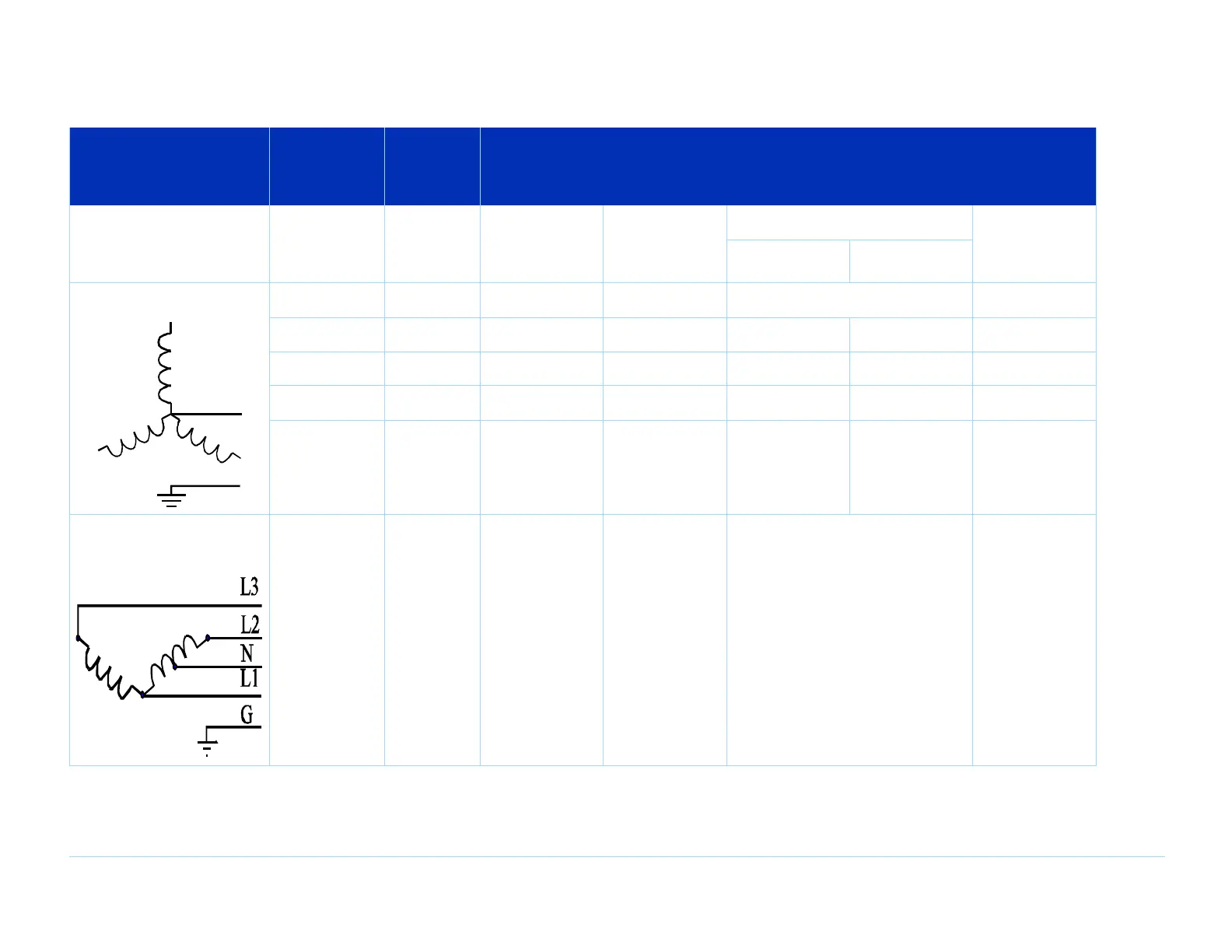

Table 10-31 3070 Series II family power requirements with E1135A/B PDU
System
Power
Option Voltage Full-Load Amps (FLA)
1
for:
2
327X 317X 307X
3
xDSL/POTS
Bay
4
Opts/Current
Testhead Support Bay
3-Phase Wye w/ Neutral 0EF (AWW) 120 / 208 15 23 42 15
05E 127 / 220 15 23 42 15
0E5 220 / 380 13 14 22 NA
05L 230 / 400 13 14 22 NA
0E7 240 / 415 13 14 22 NA
2-Phase Open Delta
w/CT Neutral
05A 100 / 200 18 21 43 NA
1. Calculated with a fully-loaded 3X7X system with 3 STC cards in every module.
2. DUT Power supplies are configured for 120 volts ac for Opt. 0EF, 05E and 05A. 0E5. 05L, 0E7 set to 240 volts ac.
3. 2- and 3- phase 307X systems only require one PDU. Single Phase systems require one PDU for the testhead and one for the support bay.
L1
L
3
L2
N
G
