Chapter 10: Site Preparation – Power Requirements for Older Systems: Tester Power Requirements (Series I/II)
4. POTS and xDSL bays always require a separate power drop. Use the POTS/xDSL power options that is in the column below on the same line as the
system power option.

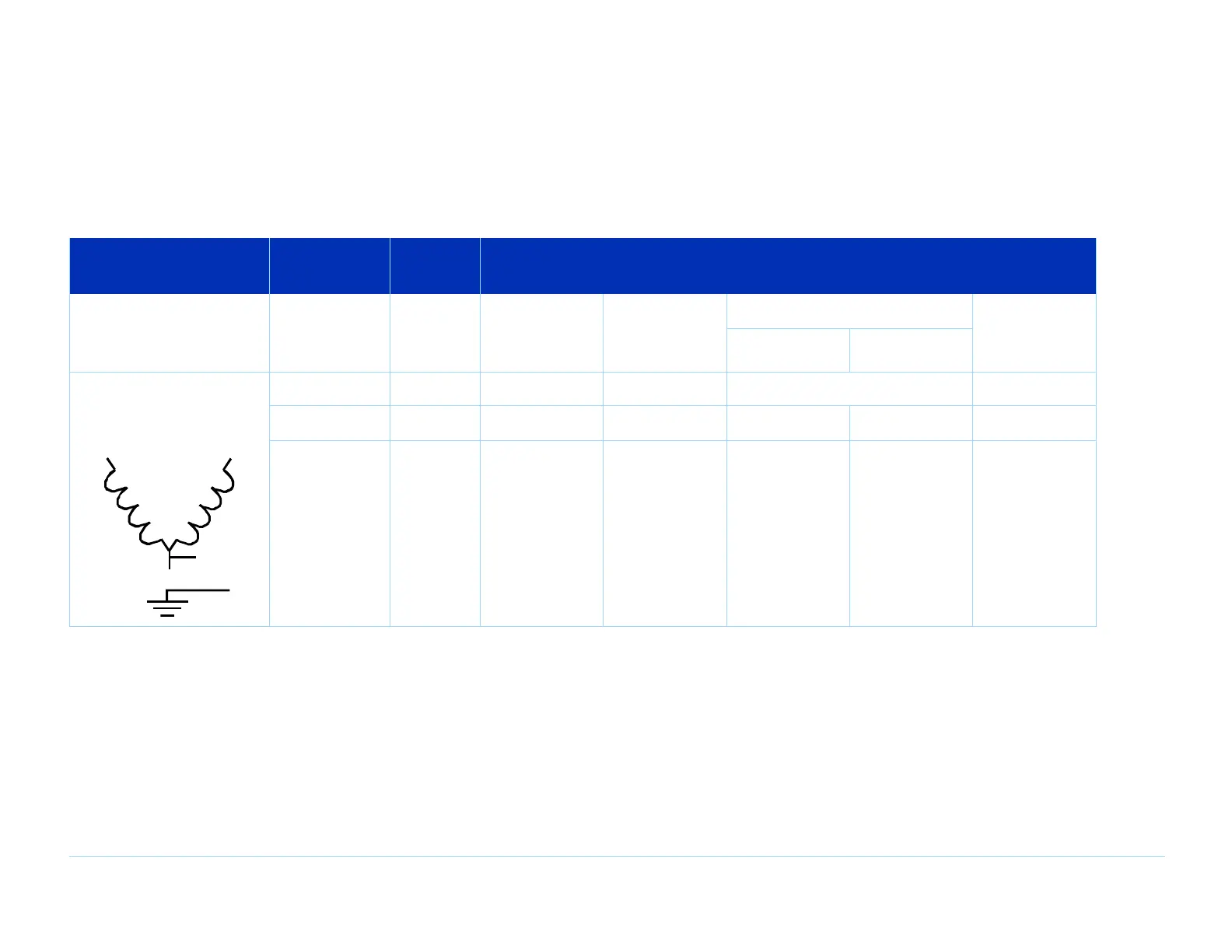

Table 10-32 3070 Series II family power requirements with E1135A/B PDU
System
Power Option Voltage Full-Load Amps (FLA)
1
for:
2
327X 317X 307X
3
xDSL/POTS
Bay
4
Opts/Current
Testhead Support Bay
Single-Phase Wye w/
Neutral
05B 220 / 380 18 21 37 NA
05G 230 / 400 18 21 37 NA
05K 240 / 415 18 21 37 NA
L1 L2
G
N
