Chapter 10: Site Preparation – Power Requirements for Older Systems: Connecting Mains Power To The System
200–240V Single-Phase Non-Earthed (AWX, 0EB, 0EJ,
0EC)

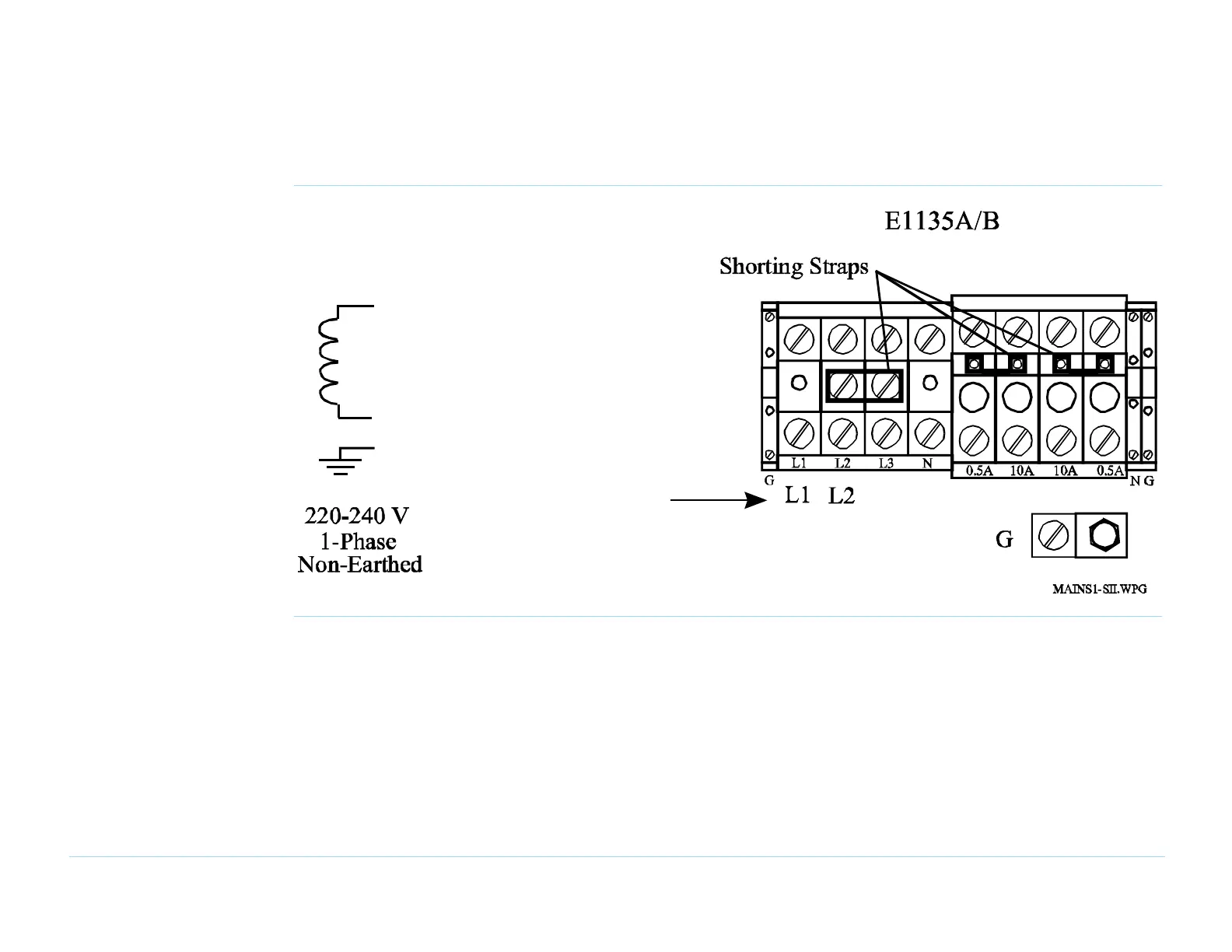

Figure 10-80 200–240V single-phase non-earthed (AWX, 0EB, 0EJ, 0EC)
Connect Input
Line here
L1
L2
G
To Next Page
