© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-162
Chapter 10: Site Preparation – Power Requirements for Older Systems: Connecting Mains Power To The System
220–240V Single-Phase Earthed (05M, 05F, 05J)

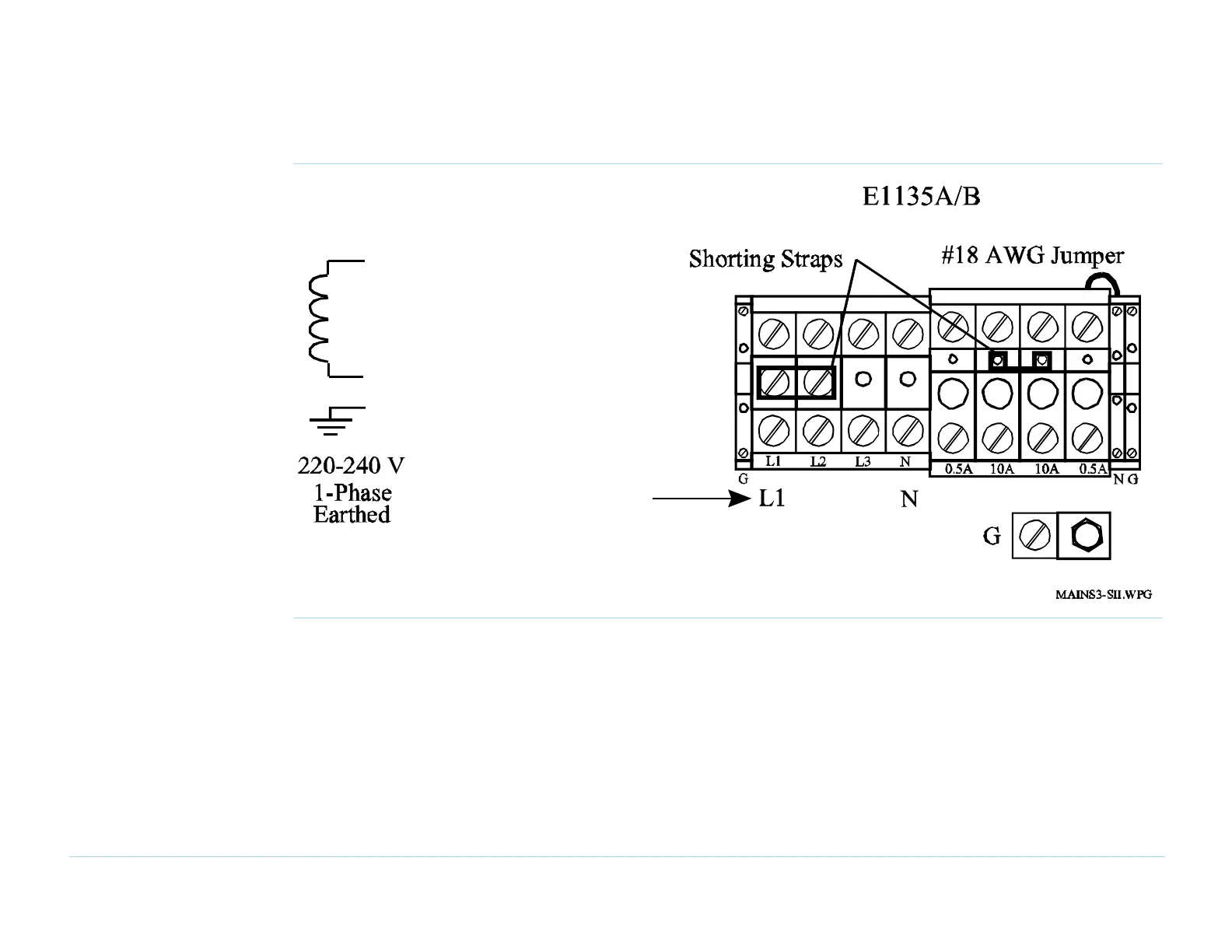

Figure 10-79 220–240V single-phase earthed (05M, 05F, 05J)
Connect Input
Line here
L1
N
G
