© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-161
Chapter 10: Site Preparation – Power Requirements for Older Systems: Connecting Mains Power To The System
200–240V Single-Phase Center-Tap Neutral (AWY, 0E3,
0EG, 0EH)

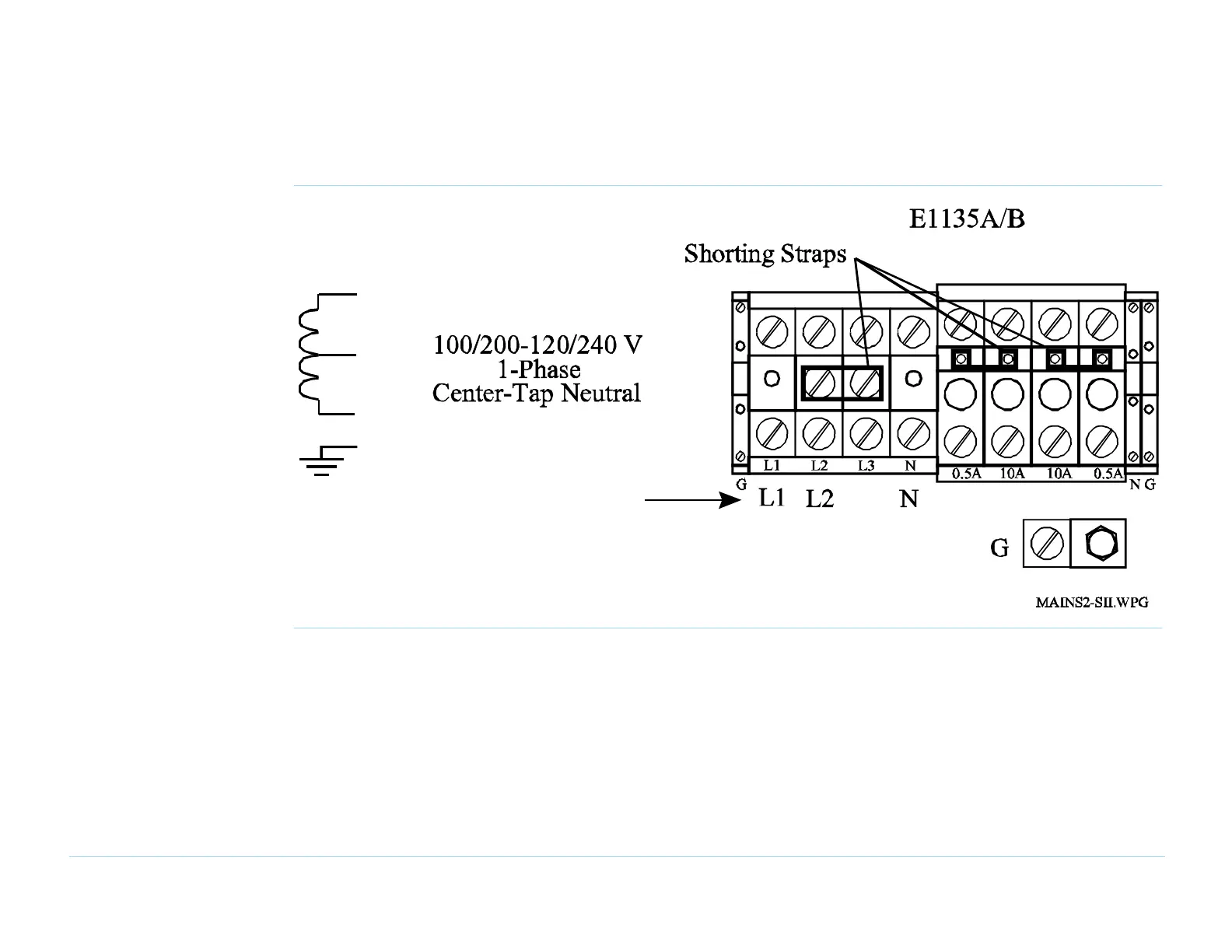

Figure 10-78 200–240V single-phase center-tap neutral (AWY, 0E3, 0EG, 0EH)
Connect Input
Line here
L1
L2
G
N
