Chapter 10: Site Preparation – Power Requirements for Older Systems: Connecting Mains Power To The System
208 or 220 V 3-Phase Wye with Neutral (0EF, AWW, 05E)
200V 2-Phase Open Delta with Phase Center-Tap Neutral
(05A)

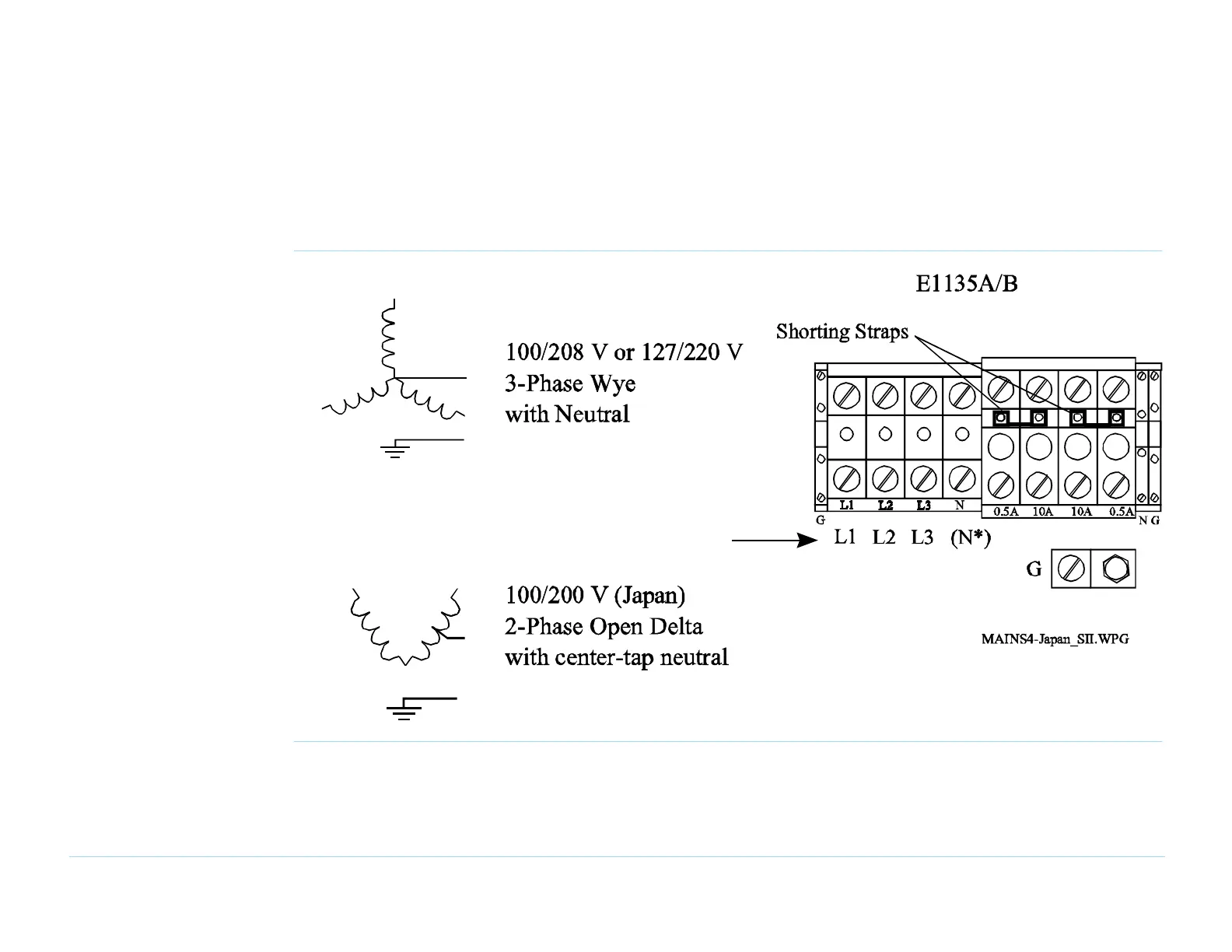

Figure 10-77 208 or 220 V 3-phase wye with neutral (0EF, AWW, 05E), 200V 2-phase open delta with phase center-tap neutral
(05A)
Connect Input
Line here
L1
L3 L2
G
N
L1
L3L2
N
G
