© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-159
Chapter 10: Site Preparation – Power Requirements for Older Systems: Connecting Mains Power To The System
220/380–240/415 V 3-Phase Wye with Neutral (0E5, 05L,
0E7)
220/380–240/415 V Single-Phase Wye with Neutral (05B,
05G, 05K)

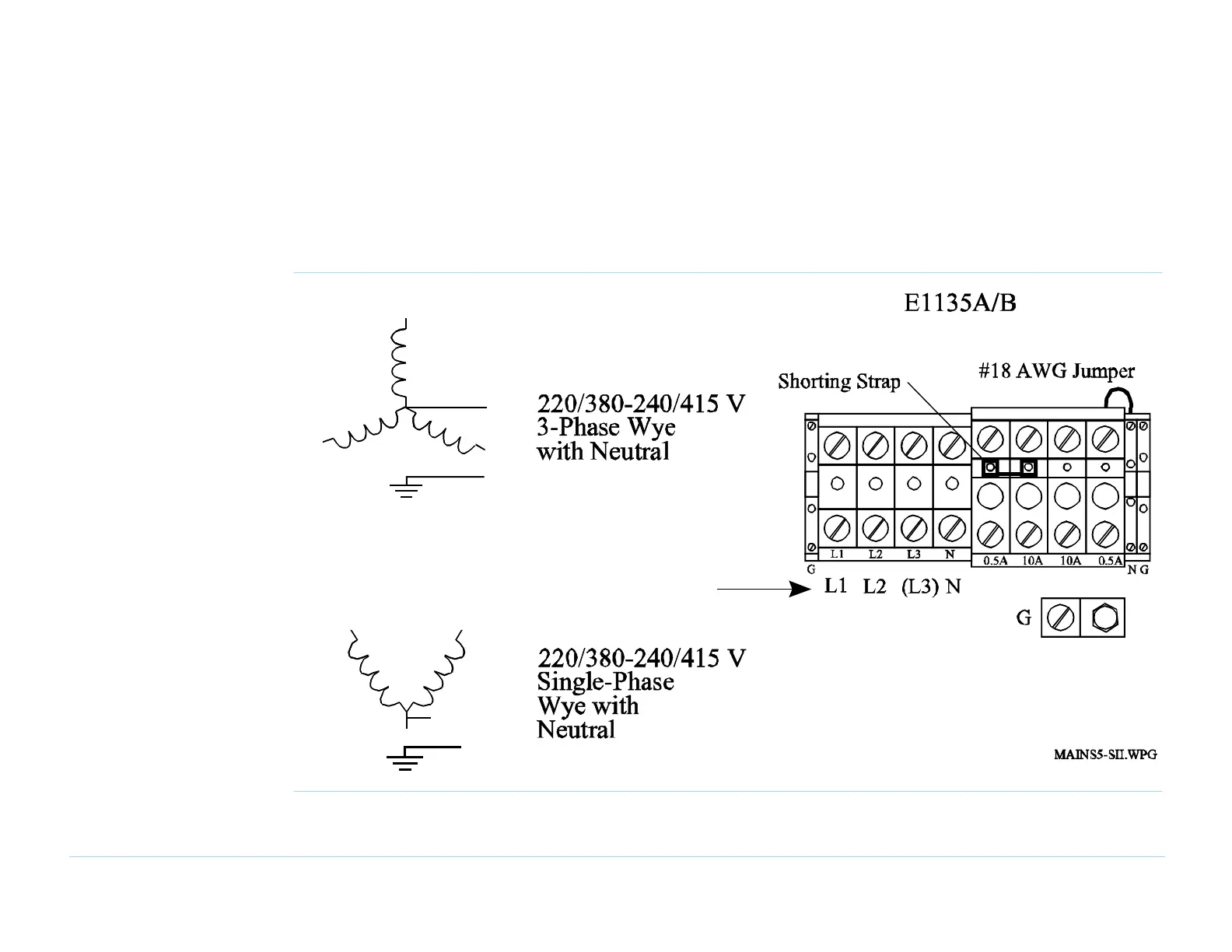

Figure 10-76 220/380–240/415 V 3-phase wye with neutral (0E5, 05L, 0E7), 220/380–240/415 V single-phase wye with neutral
(05B, 05G, 05K)
Connect Input
Line here
L1
L3
L2
N
G
L1 L2
G
N
Note: L3 is available only on 3-phase power
