© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 11-10
Chapter 11: Site Preparation – Series 3 / 79000 Current Reduction Conversion: Series 3 Current Reduction Conversion Procedure

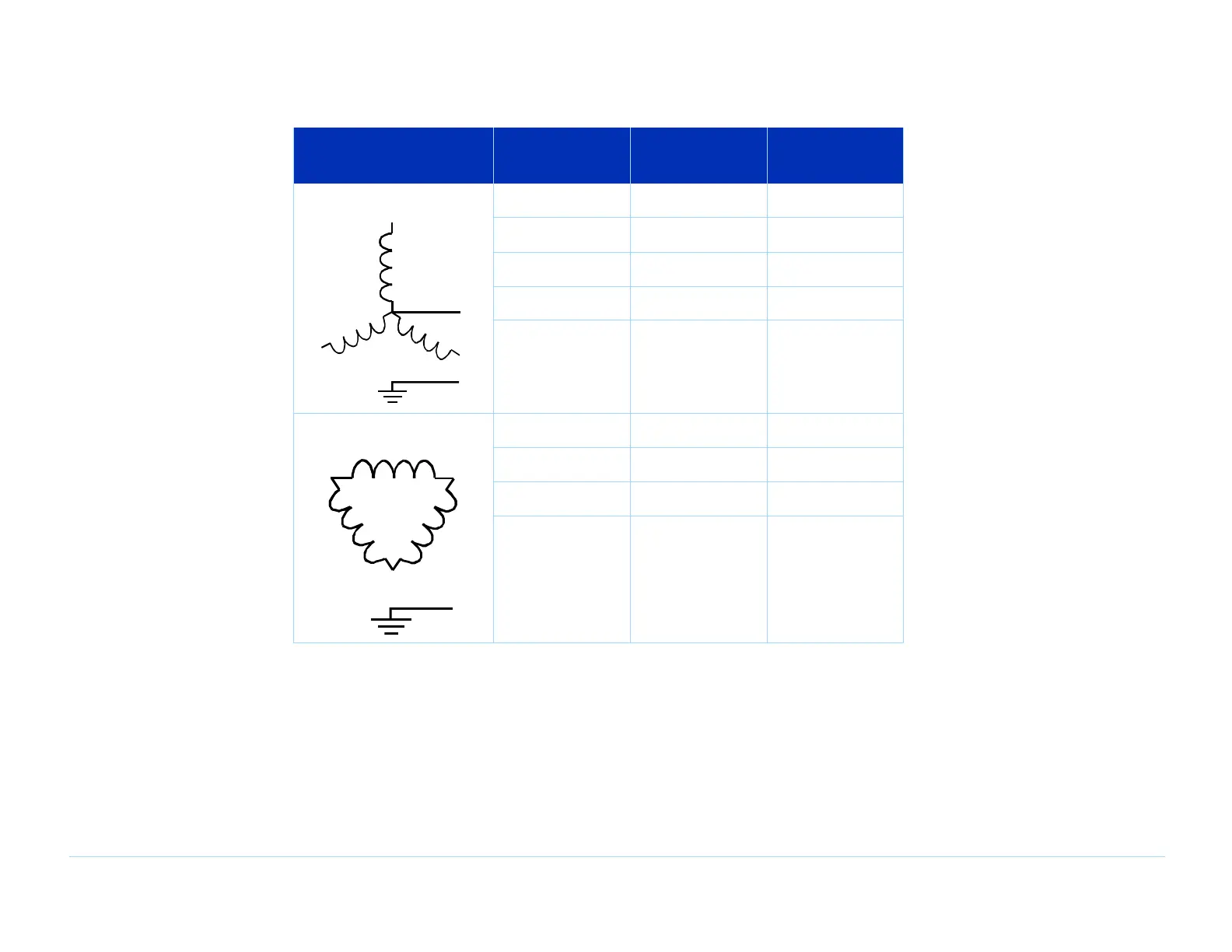

Table 11-2 DUT power supply line voltage setting (three-phase)
System Power
Option
Voltage DUT Supply
Line Voltage
3-Phase Wye w/ Neutral AWW 120 / 208 220V
05E 127 / 220 220V
0E5 220 / 380 220V
05L 230 / 400 240V
0E7 240 / 415 240V
Three-Phase Delta 0ED 200 220V
05C 220 220V
05H 230 240V
0E6 240 240V
L1
L
3
L2
N
G
L1
L3 L2
G
