Chapter 11: Site Preparation – Series 3 / 79000 Current Reduction Conversion: Series 3 Current Reduction Conversion Procedure

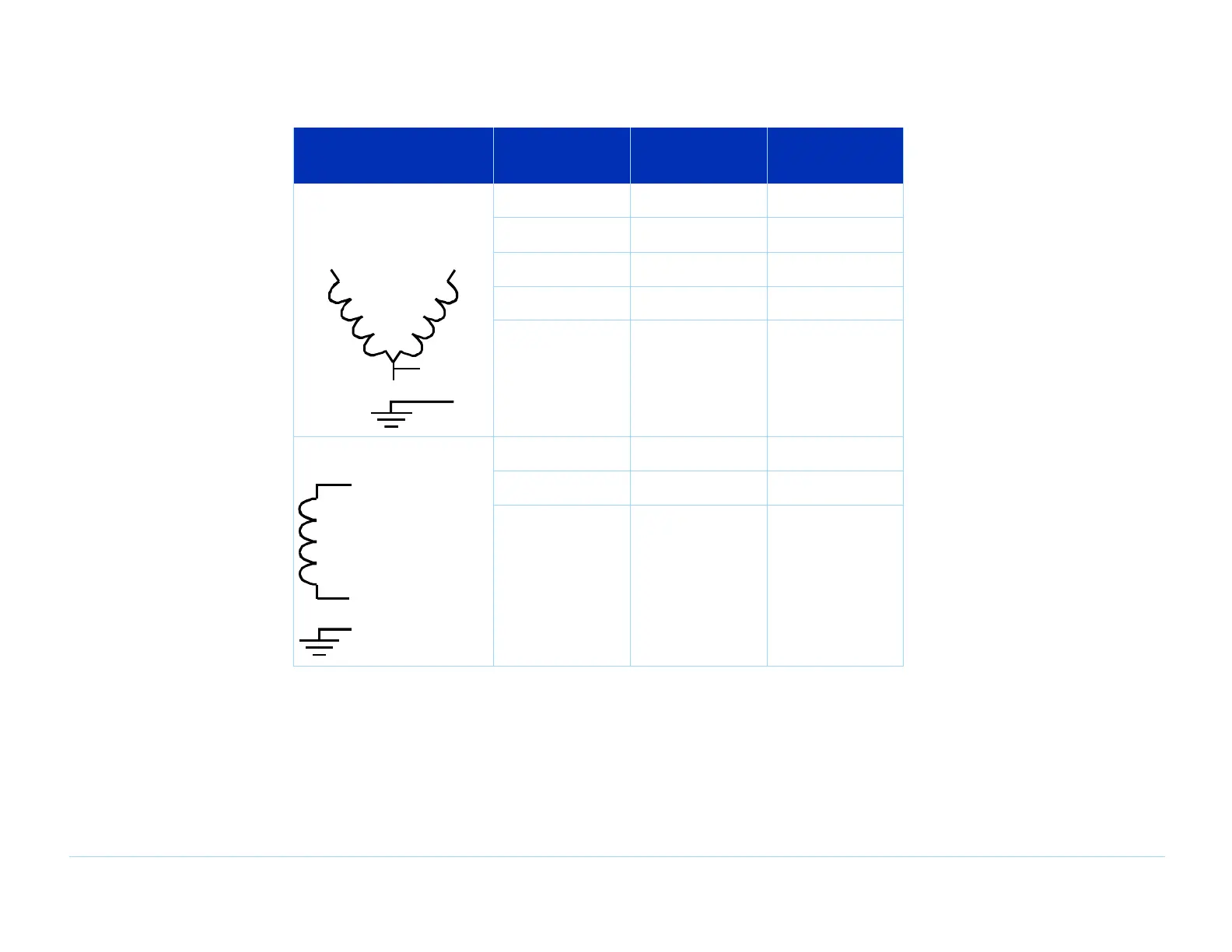

Table 11-3 DUT power supply line voltage setting (single-phase)
System Power
Option
Voltage DUT Supply
Line Voltage
Single-Phase Wye w/
Neutral
AWV 120 / 208 220V
AWZ 127 / 220 220V
05B 220 / 380 220V
05G 230 / 400 240V
05K 240 / 415 240V
Single-Phase Earthed 05M 220 220V
05F 230 240V
05J 240 240V
L1 L2
G
N
L1
N
G
