© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 11-13
Chapter 11: Site Preparation – Series 3 / 79000 Current Reduction Conversion: Series 3 Current Reduction Conversion Procedure

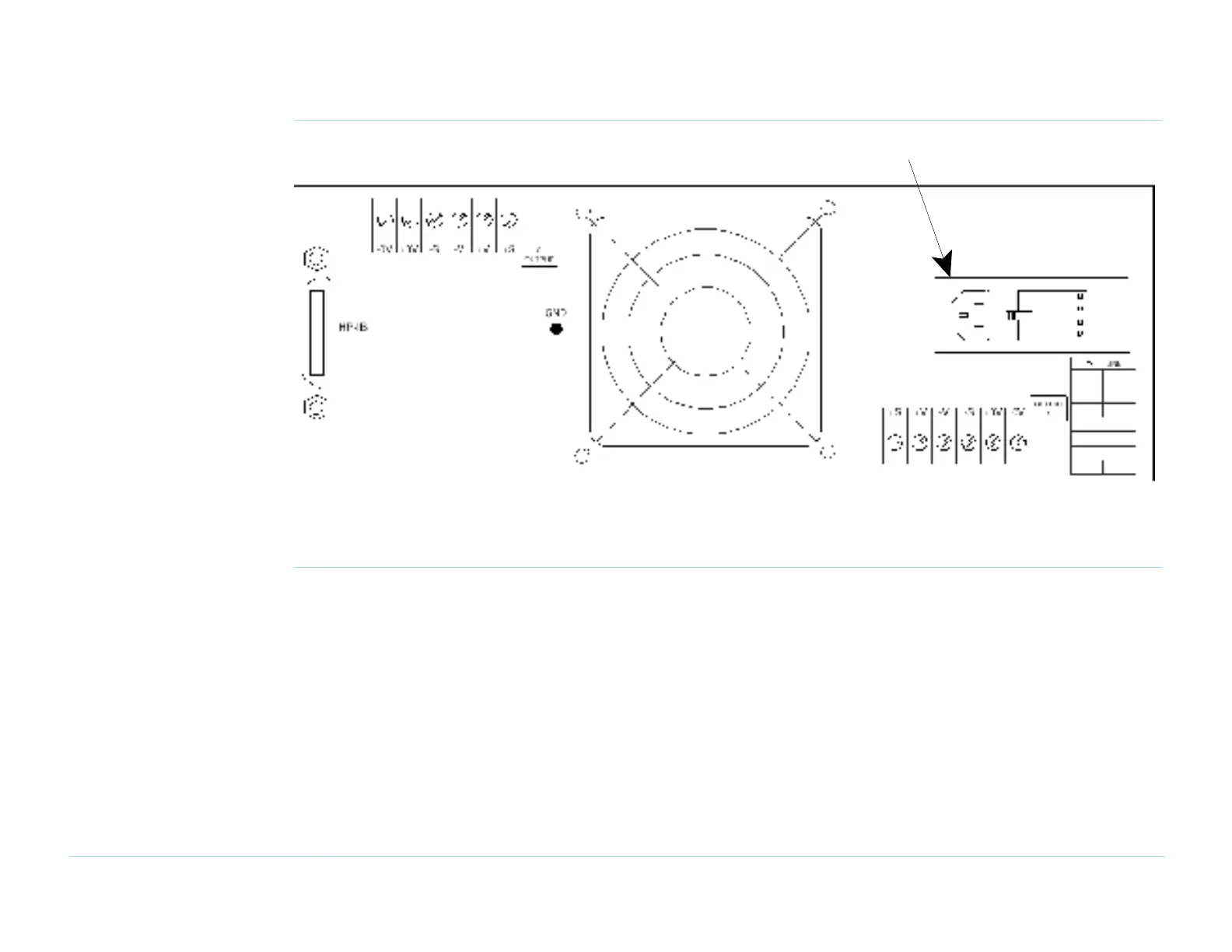

Figure 11-3 6621A and 6624A line input power module location
The procedure for changing the input line voltage is as
follows.
1 Remove the power card from the ac input socket on
the back of the power supply.
2 To open the power module, move the plastic door on
the module aside. If your line voltage change
requires a change in rating of the fuse, rotate FUSE
PULL to the left and remove the fuse (see
Figure
11-4 on page 11-14).
3 Grasp the voltage selector PC board with a pair of
needle-nose pliers and slide it out of its slot.
4 To select a voltage, orient the PC board so that the
desired voltage appears on the top left side of the
board (see
Figure 11-4 on page 11-14). Push the
board all the way back into its slot.
The desired line voltage must be visible through the
module window when the board is installed.
rear662x.wpg
Line input power module
