Agilent 4155C/4156C User’s Guide Vol.1, Edition 11 2-11
Installation
Connecting the 41501A/B SMU/Pulse Generator Expander
Connecting the 41501A/B SMU/Pulse Generator
Expander
WARNING The 4155C/4156C, together with the 41501A/B, weights about 37 kg (81.8 lb).
The 4155C/4156C is not anchored to the 41501A/B. Use caution when handling.

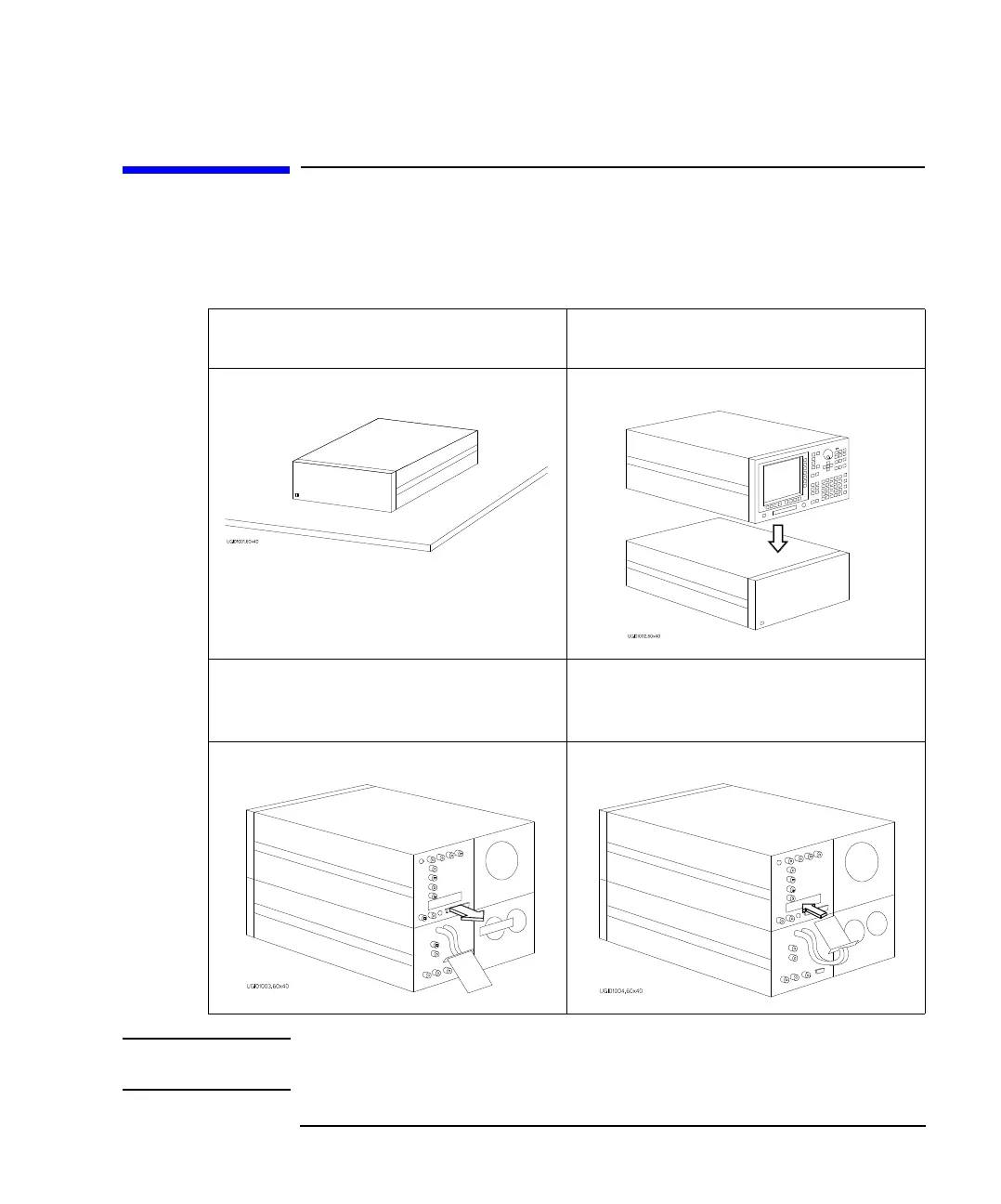

1. Place the 41501A/B on your workbench. 2. Place the 4155C/4156C on top of the
41501A/B.
3. Remove the blank panel labeled "To
Expander Box Interface" from the rear
panel of the 4155C/4156C.
4. Insert the 41501A/B interface board into
the 4155C/4156C, then attach it with the
thumbscrews.
To Next Page
