2-20 Agilent 4155C/4156C User’s Guide Vol.1, Edition 11
Installation
Installing Accessories
To Install the 16440A SMU/Pulse Generator Selector
To use the 16440A, the 4155C/4156C must be equipped with an 41501A/B
SMU/pulse generator expander with two PGUs.
• To attach the 16440A selector to the 16442A/B test fixture:

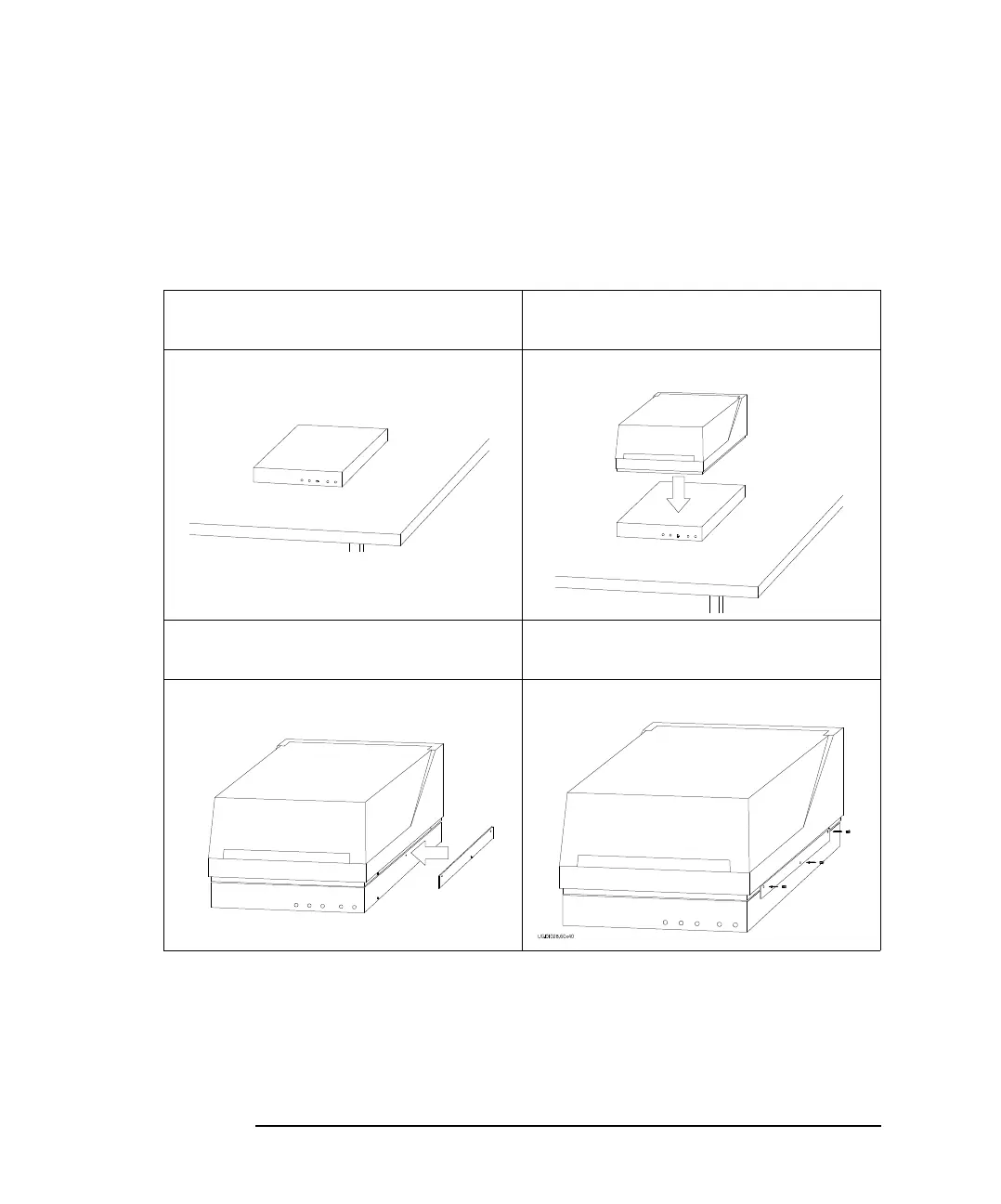

1. Place the 16440A selector on your
workbench.
2. Place the 16442A/B test fixture on top of
the 16440A selector.
3. Position a plate on both sides. 4. Attach each plate using the three flathead
screws supplied with the instrument.
