2-40 Agilent 4155C/4156C User’s Guide Vol.1, Edition 11
Installation
Mounting Connectors
To Connect the VSU/VMU/PGU Outputs

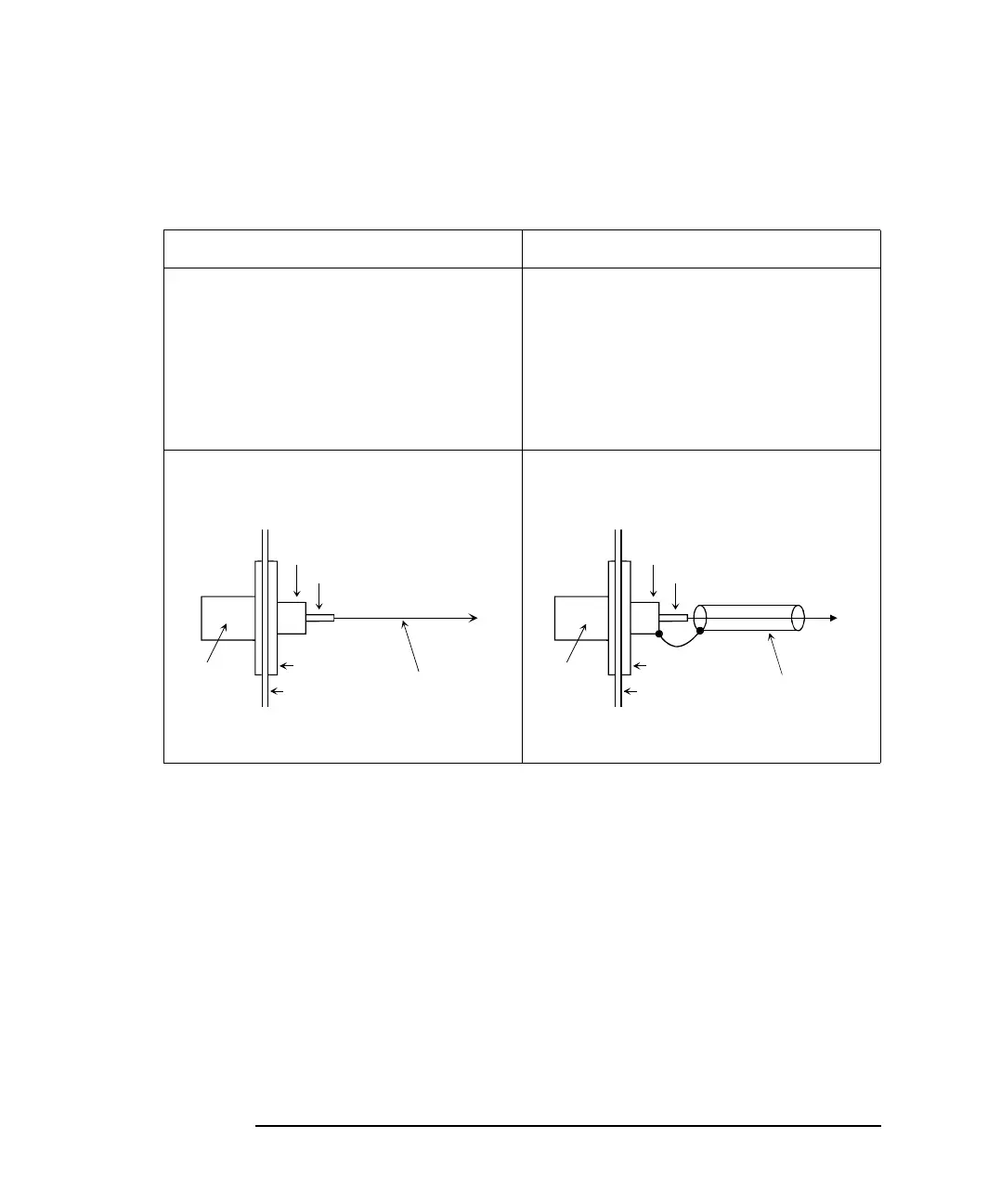

The following figures show connection examples for VSU/VMU and PGU output.
VSU/VMU connector PGU connector
Use AWG 24 single-strand insulated wire
(Agilent part number 8150-0447) to connect
to a prober, socket, or DUT.
Regardless of the output impedance setting,
use a low-noise coaxial cable (Agilent part
number 8120-0102) from the connector to a
prober, socket, or DUT.
If you use an 16440A selector, use a
low-noise coaxial cable (Agilent part number
8121-1191).
Common
Signal line
Insulator
Plate
Wire
BNC
connector
to
DUT
Common
Signal line
Insulator
Plate
Coaxial cable
BNC
connector
to
DUT
