Agilent 4155C/4156C User’s Guide Vol.1, Edition 11 2-27
Installation
Installing Accessories
• Connecting the 16440A selector to the 4155C/4156C
Turn off the 4155C/4156C and 41501A/B before connecting the instruments.

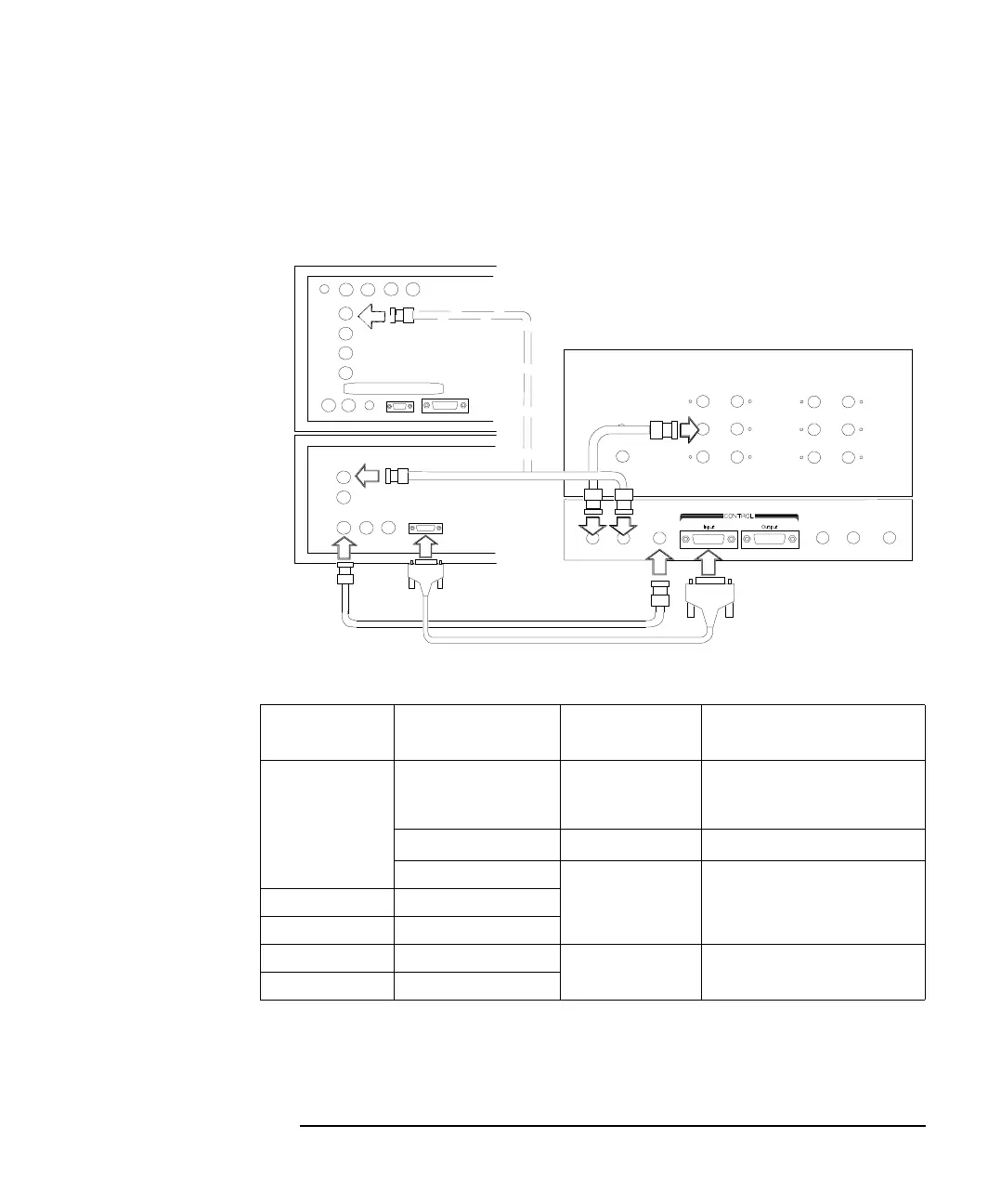

Then connect as shown below.
1
2
3
4
16442A/B Test Fixture
4155/4156
16440A Selector
41501
Instrument Terminal
16440A
Terminal
Cable
41501A/B To SMU/Pulse
Generator Selector
Interface
CONTROL Input 3.0 m or 1.5 m Control Cable
PGU
Input PGU
a
3.0 m or 1.5 m Coaxial Cable
MPSMU or HPSMU Input SMU 3.0 m or 1.5 m Triaxial Cable
4155C MPSMU
4156C HRSMU
16442A/B SMU
Output Selected
b
40 cm Triaxial Cable
Connector Plate SMU
a. You can use two inputs for one selector, and four inputs for two selectors.
b. You can use two outputs for one selector and four outputs for two selectors. Selector
output is either one of the PGU outputs or the SMU output.
