Chapter 5 Setting Up the Software for a Measurement
Recalling Saved Setup Files and Data Files
Getting Started Guide 5-13
5

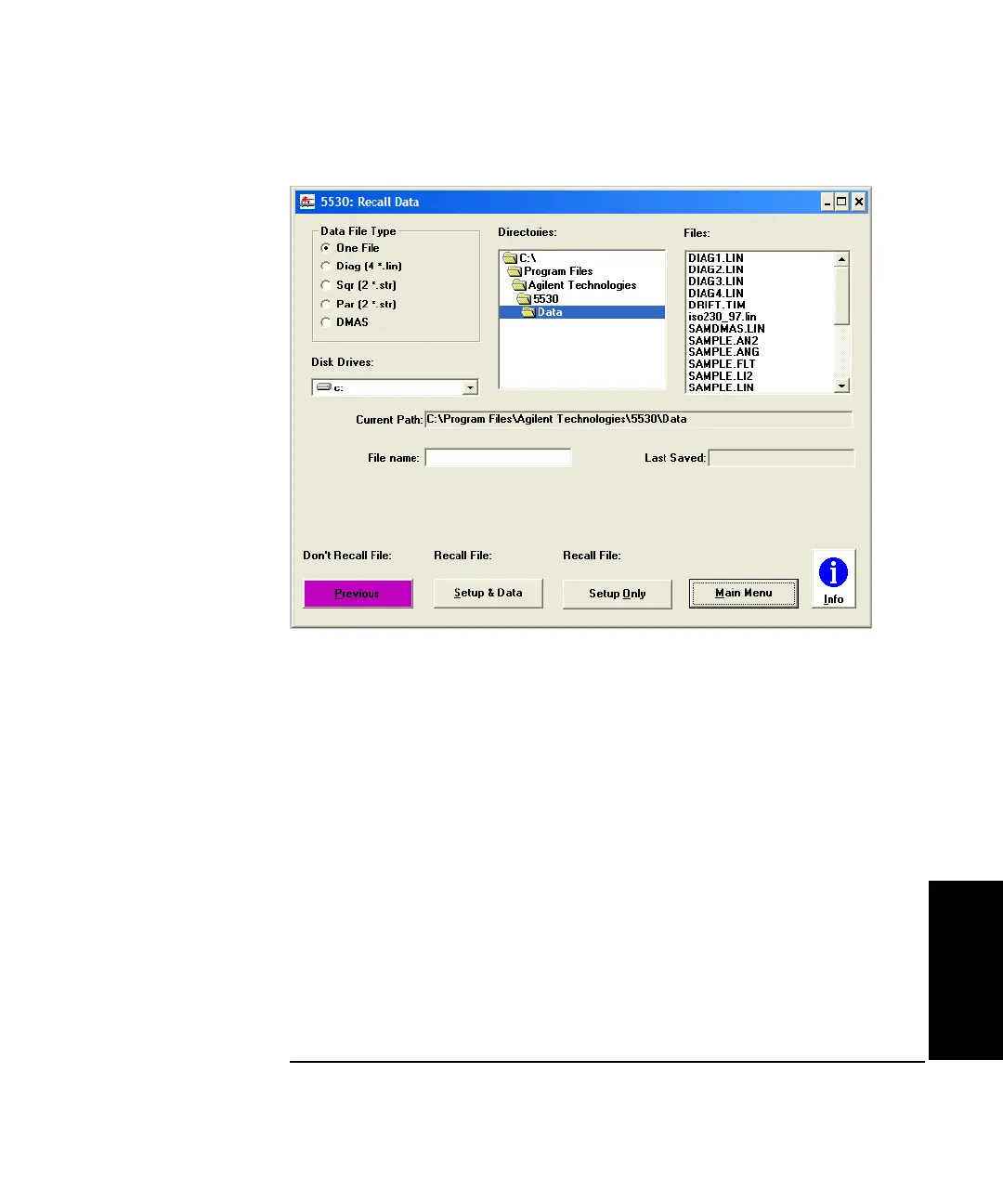

Figure 5-5. Recall Data screen
2 If necessary, select the disk drive where the file is stored.
Click the arrow, or press the Alt key and the down arrow key
simultaneously, to display available disk drives. Then select the name of
the drive you want.
3 Select the directory where the file is stored.
A list of files is displayed. The three-character file extension indicates the
type of measurement—for example, type “lin” for linear.
To Next Page
