Chapter 6 Making the Measurement
Collecting Measurement Data
Getting Started Guide 6-7
6
Collecting Measurement Data
Once you have set up the Agilent 5530’s hardware and the measurement
portions of the software, you are ready to collect measurement data.
On the Set Up Measurement screen, select Collect Data.
The Collect Data screen is displayed (Figure 6-4).
The Collect Data screen displays the results of your measurement in three
ways:
•numeric displays
• Position/Error list box
• graph of data as it is recorded

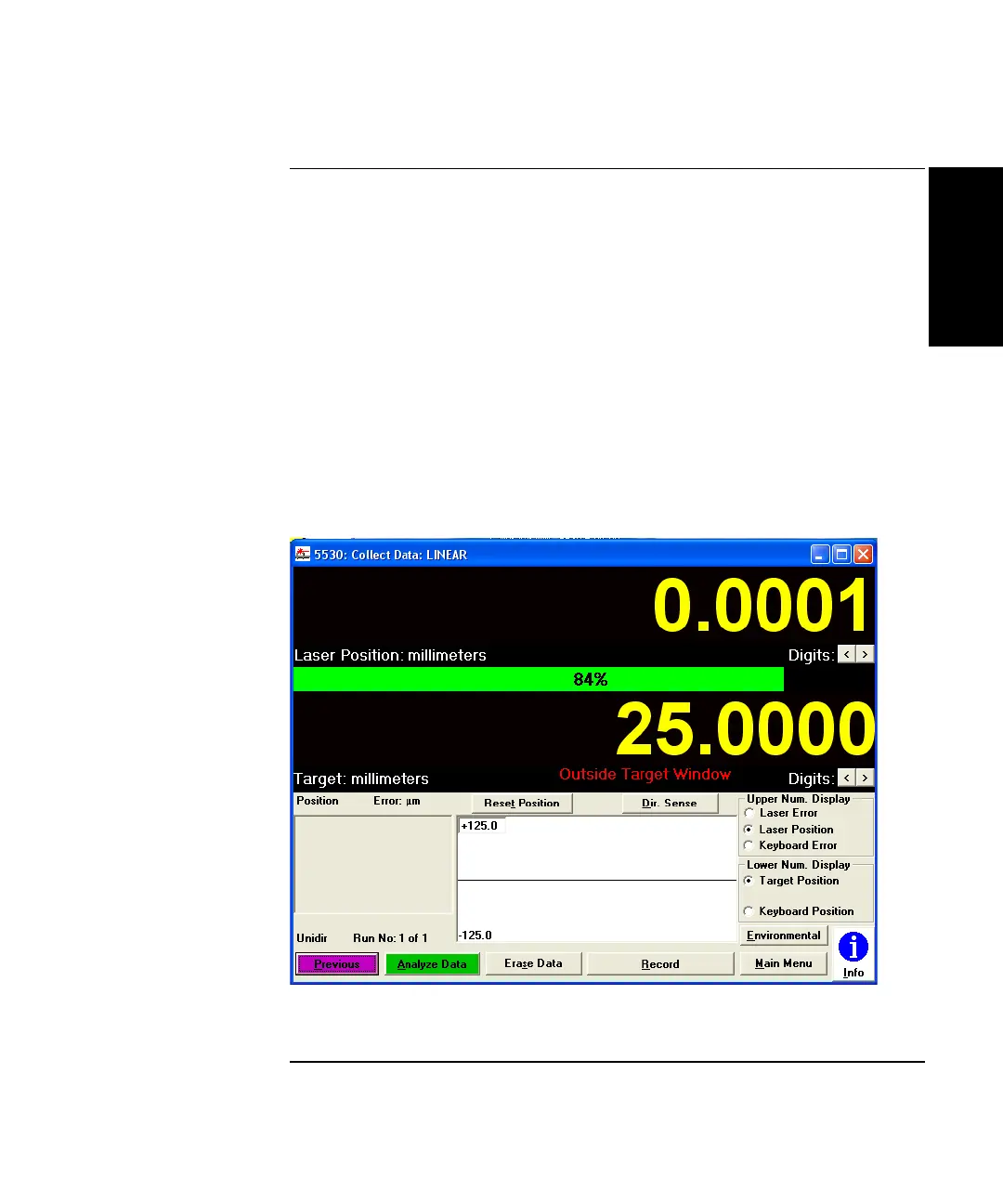

Figure 6-4. Collect Data screen
