Agilent Technologies 5530 Getting Started Guide

Chapter 3 Installing the Software and Connecting Components
Agilent 10888A Remote Control Unit
3-16 Getting Started Guide
3
Agilent 10888A Remote Control Unit
The optional Agilent 10888A Remote Control Unit includes a non-
removable 15-meter (49-foot) cable that plugs into the Agilent E1735A
USB Axis Module.
To connect the cable, line up the red mark on the cable connector with the
small circle above the port labelled “Remote” on the Axis Module. When
the connector is properly aligned, it will slide into the port and lock.

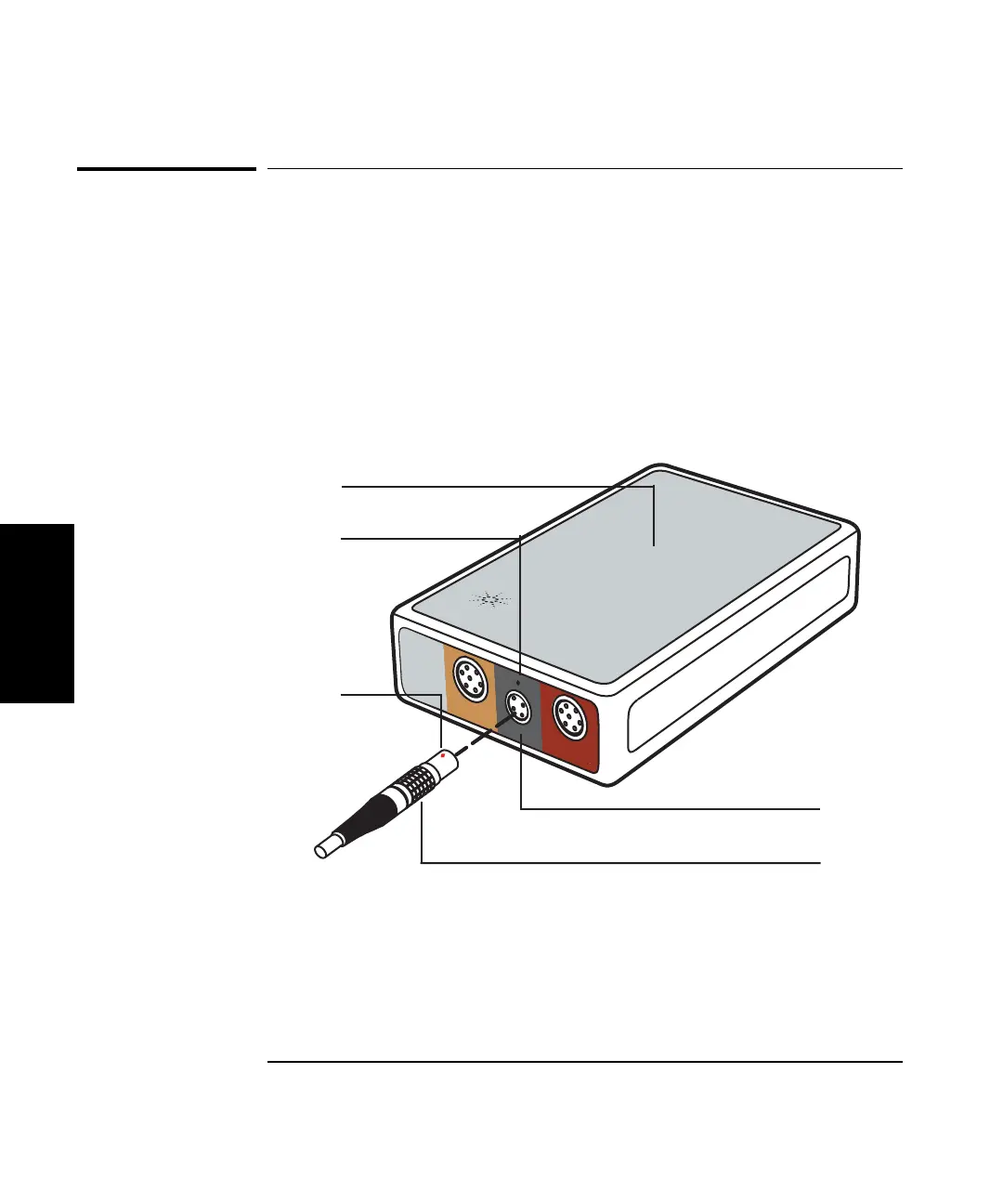

Figure 3-13. Connecting the Remote Control Unit to the Axis Module
1 Agilent E1735A
Axis Module
2 Module connector
alignment mark
3 Cable connector
alignment mark
4 Axis Module connector
5 Cable connector
1
Agilent Technologies
E1735A
USB Axis Module
4
5
A quad B
Input
Remote
Las
er
Head
2
3
