Service Guide 3-59
8719ET/20ET/22ET Adjustments and Correction Constants
8719ES/20ES/22ES Sampler Calibration Correction Constants (Test 51)
RF Network Analyzers

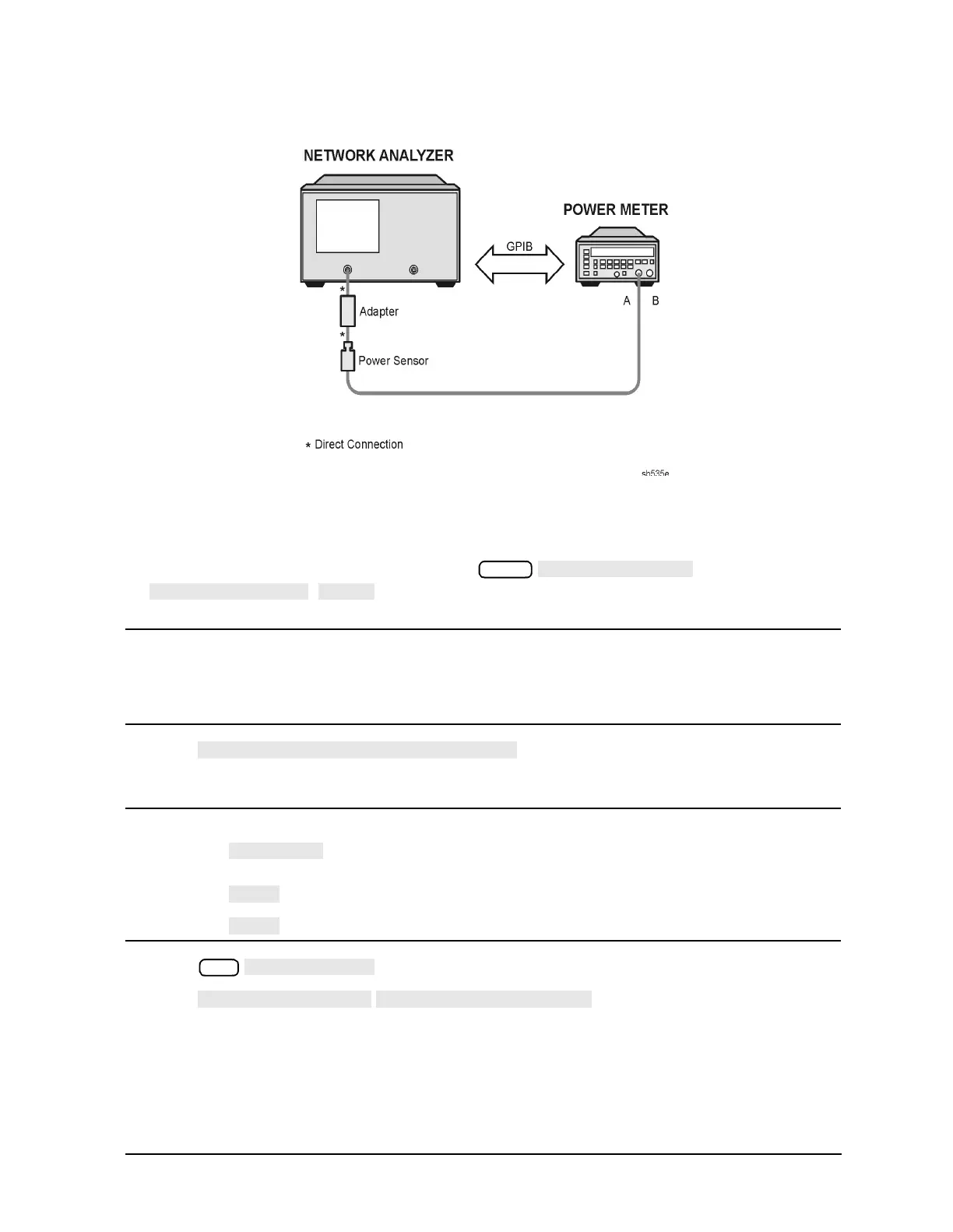

Figure 3-16 Setup for Sampler Calibration
Power Meter Setup
4. Zero and calibrate the power meter.
5. To set up the power meter address, press
on the analyzer.
NOTE The default power meter GPIB address is 13. Make sure this address is the
same as the power meter’s GPIB address. Otherwise, use the analyzer’s front
panel keypad to enter the correct GPIB address or change the address in the
power meter.
6. Press until the correct power meter model
number appears in the brackets.
NOTE If you are using an HP/Agilent E4418A or a HP/Agilent E4419A, select
power meter type from the analyzer menu. On the power meter
softkey menu press:
on the E4418A
on the E4419A
7. Press .
8. Press . Refer to the back of the power
sensor to locate the different calibration factor values along with their corresponding
frequencies.
Local
POWER MTR:[POWER METER TYPE]
Cal
