Agilent Technologies 8720E Series Service Guide

Service Guide 5-5
8719ET/20ET/22ET Power Supply Troubleshooting
8719ES/20ES/22ES Simplified Block Diagram of Power Supply Group
RF Network Analyzers
Simplified Block Diagram of Power Supply Group
Figure 5-1 shows the power supply group in simplified block diagram form. Refer to the
detailed block diagram of the power supply located at the end of this chapter to see voltage
lines and specific connector pin numbers.

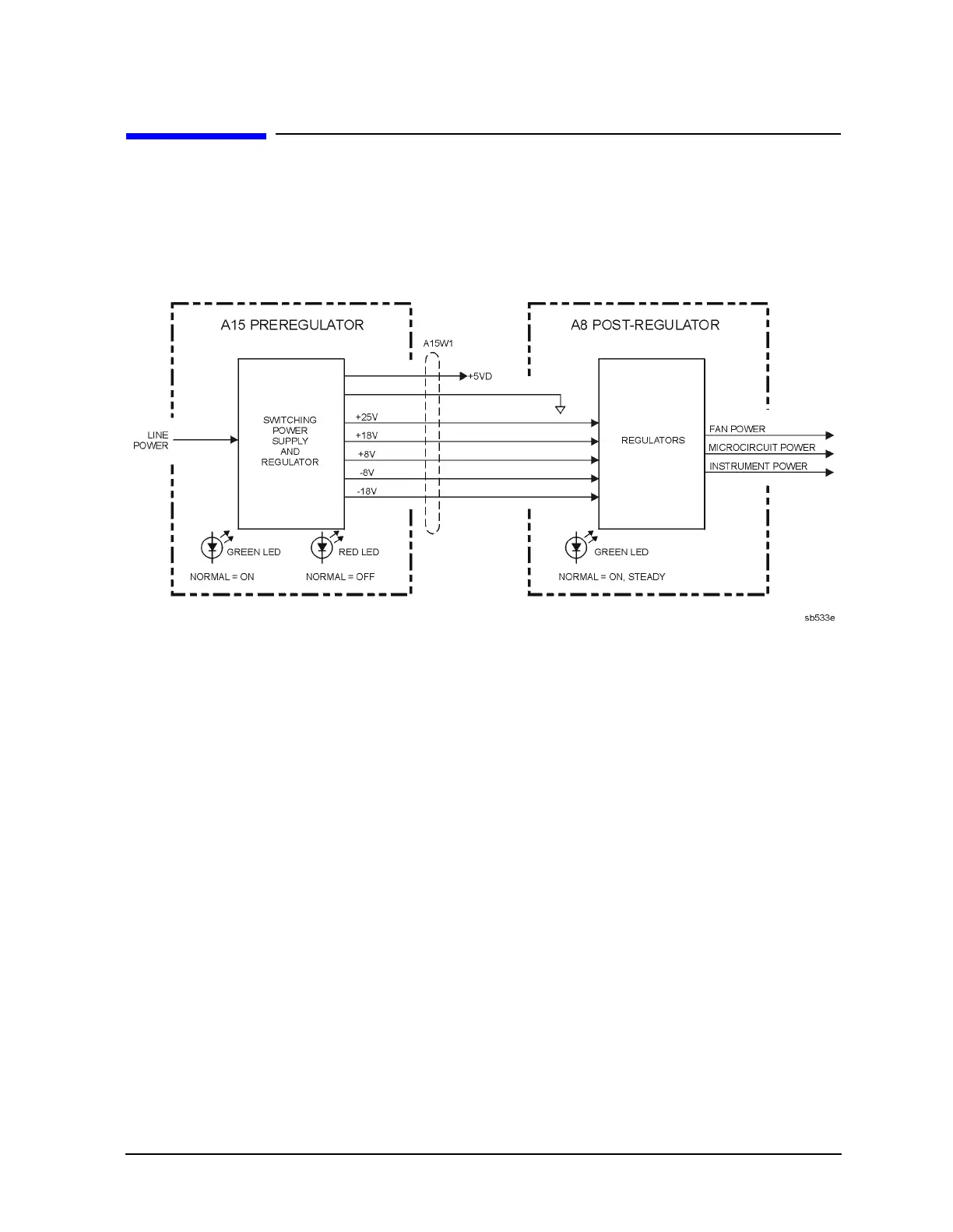

Figure 5-1 Power Supply Group Simplified Block Diagram
