Agilent Technologies 8720E Series Service Guide

Service Guide 7-7
8719ET/20ET/22ET Source Troubleshooting
8719ES/20ES/22ES Start Troubleshooting Here
RF Network Analyzers

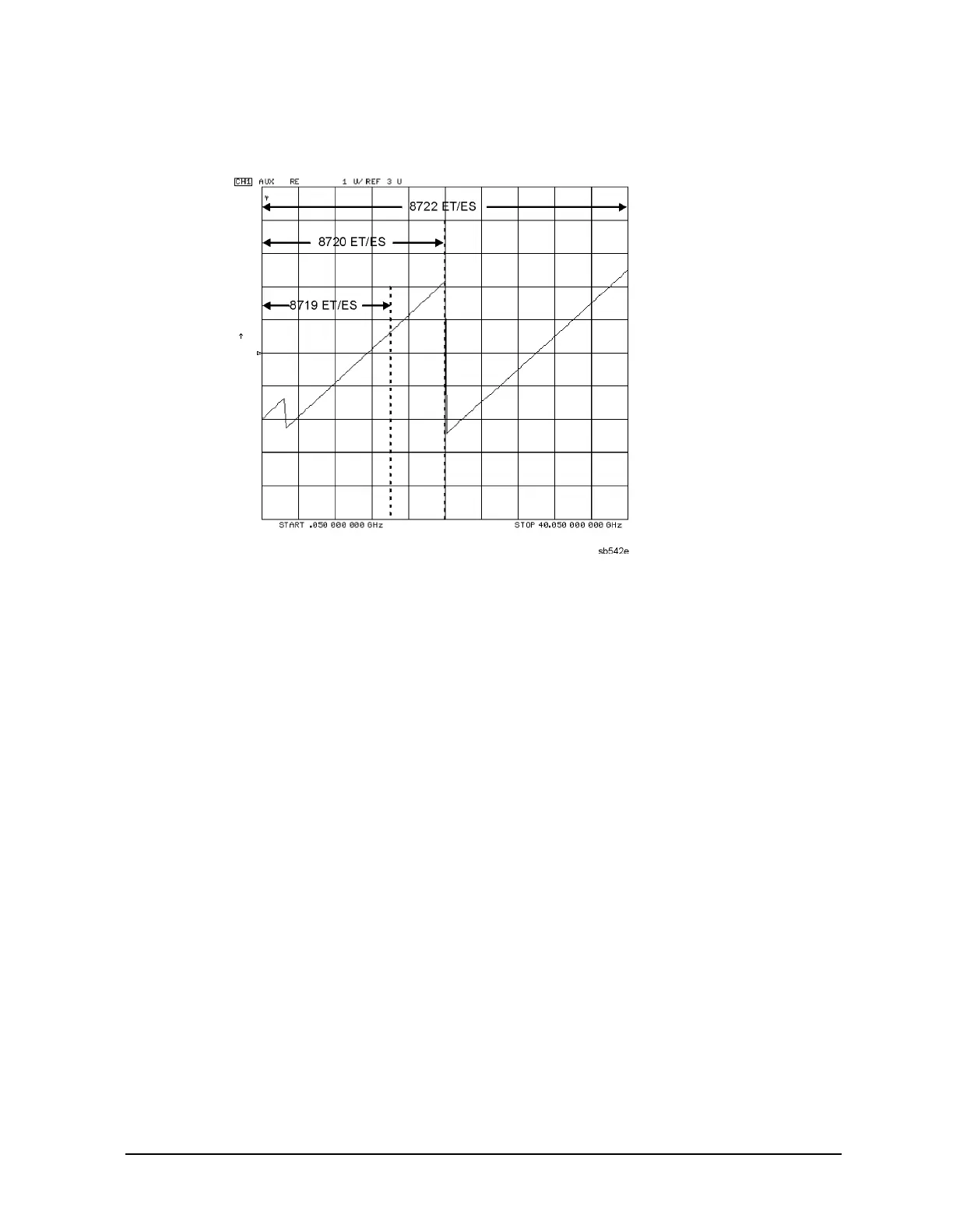

Figure 7-1 0.25 V/GHz Waveform at Abus Node 9
• If the waveform appears normal in one but not all frequency bands, go to “Band-Related
Problems” on page 7-22.
• If the waveform appears abnormal in all frequency bands, refer to “Broadband Phase
Lock Problems” on page 7-8.
