108 Maintaining Your GC

7 Maintaining the COC Inlet

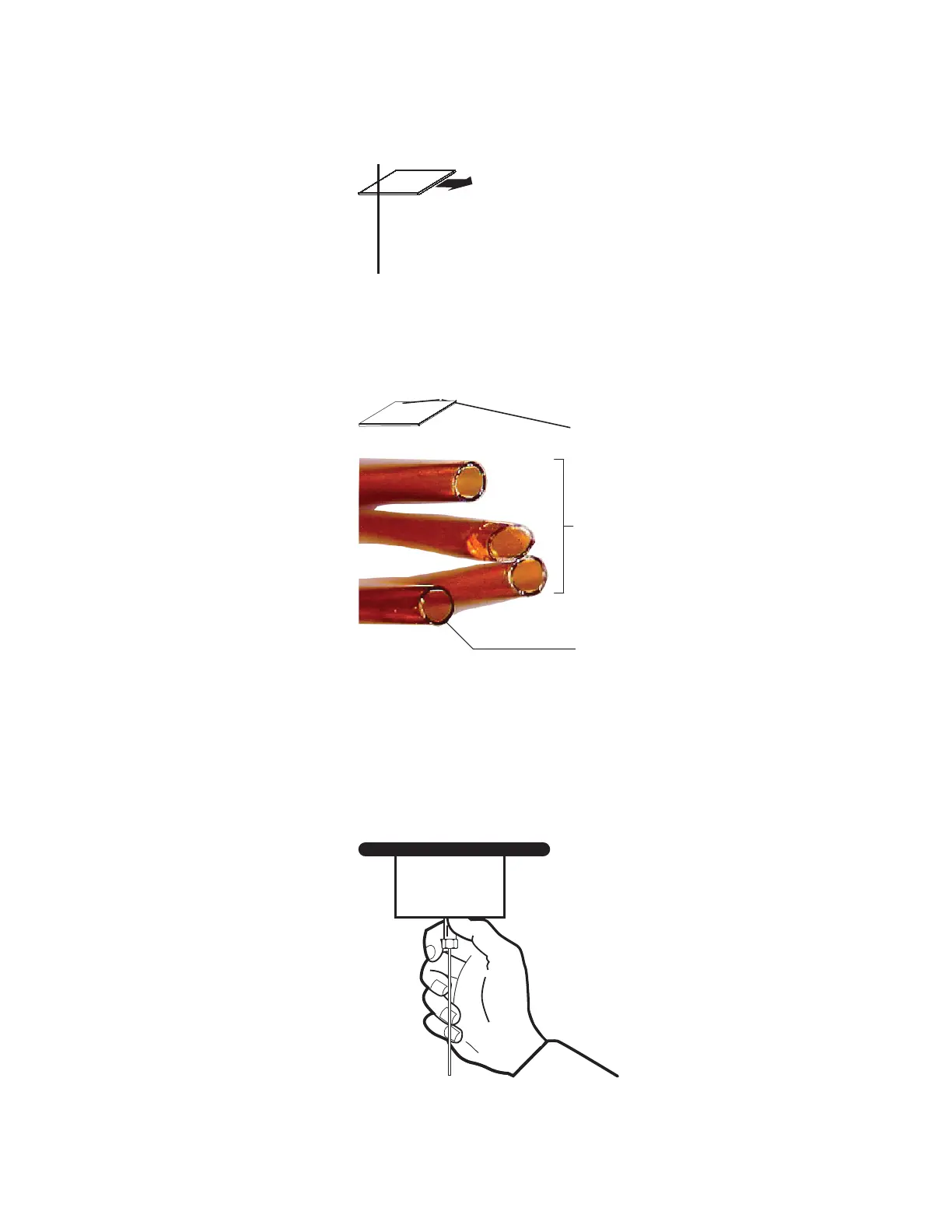

Break off the column end by supporting it against the

column cutter opposite the scribe. Inspect the end with a

magnifying loupe to make certain there are no burrs or

jagged edges.

7 Wipe the column walls with a tissue dampened with

isopropanol to remove fingerprints and dust.

8 Gently insert the column into the inlet until it bottoms.

You should feel spring tension as you push up on the

column. (Do not withdraw the column.)

9 Insert the column nut into the inlet fitting and

finger- tighten.

Good

Bad
