17 Maintaining the Aux EPC

Consumables and Parts for the Aux EPC

See the Agilent catalog for consumables and supplies for a

more complete listing, or visit the Agilent Web site for the latest

information (www.agilent.com/chem/supplies).

Tab le 4 9 Aux EPC consumables

Description Part number

O-rings, package of 6 5181-3344

Blue dot frit, high flow resistance G3430-80063

Red dot frit, medium flow resistance G3430-80062

Brown dot frit, low flow resistance G3430-80061

No frit (brass tube), zero flow resistance G3430-20011

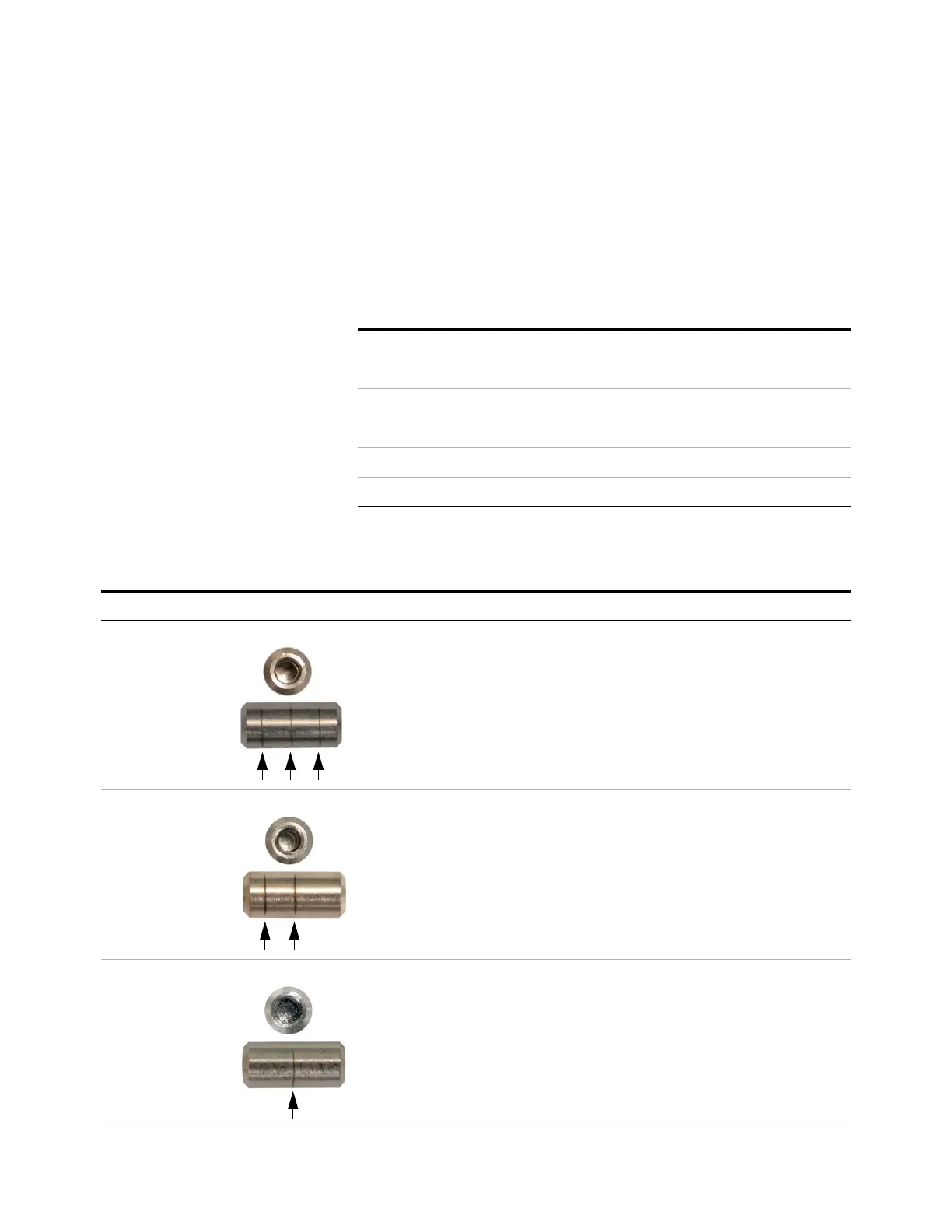

Tab le 5 0 Auxiliary channel frits

Frit marking Flow resistance Flow characteristic Often used with

Three rings

Blue

High 3.33 ± 0.3 SCCM @ 15 PSIG NPD Hydrogen

Two r ing s

Red

Medium 30 ± 1.5 SCCM H2 @ 15 PSIG FID Hydrogen

One ring

Brown

Low 400 ± 30 SCCM AIR @ 40 PSIG FID Air, QuickSwap,

Purged splitters, Deans

Switch
