158 Maintaining Your GC

9 Maintaining the PTV Inlet

To Clean the Septumless Head on the PTV Inlet

1 Gather the following:

• Syringe with 23- gauge needle (See “Consumables and

Parts for the PTV Inlet” on page 152.)

• Septumless head rebuild kit

• Hexane

• Clean, lint- free gloves

• 5/16- inch wrench

• Lint- free gloves

2 Load the inlet maintenance method and wait for the GC

to become ready.

3 Disconnect the carrier gas line.

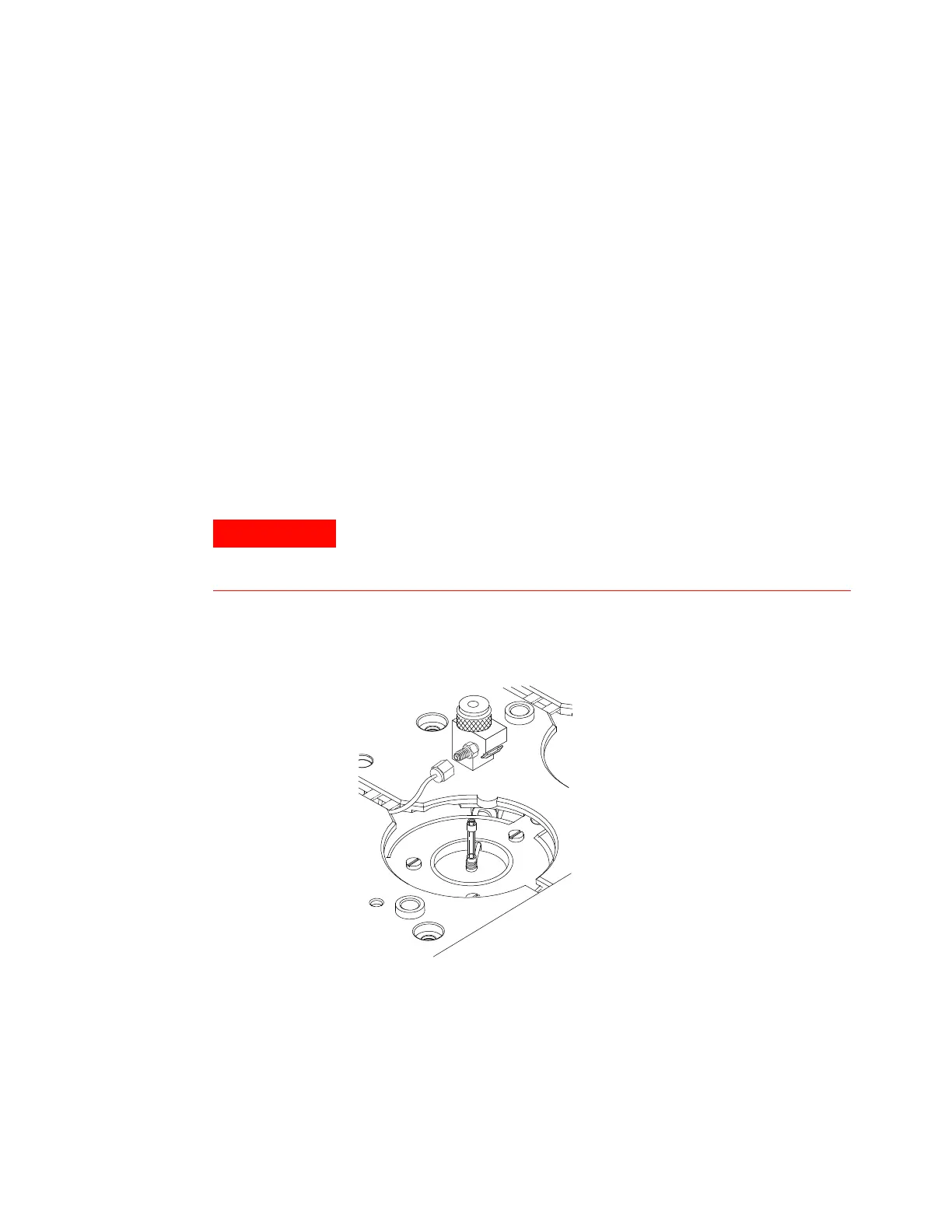

4 Unscrew and remove the septumless head assembly from

the inlet.

5 Unscrew the sealing element from the head assembly and

carefully remove the Viton seal and the pressure spring

WARNING

Be careful! The oven and/or inlet may be hot enough to cause

burns. If either is hot, wear heat-resistant gloves to protect your

hands.

Table of Contents3
