254 Maintaining Your GC

13 Maintaining the uECD

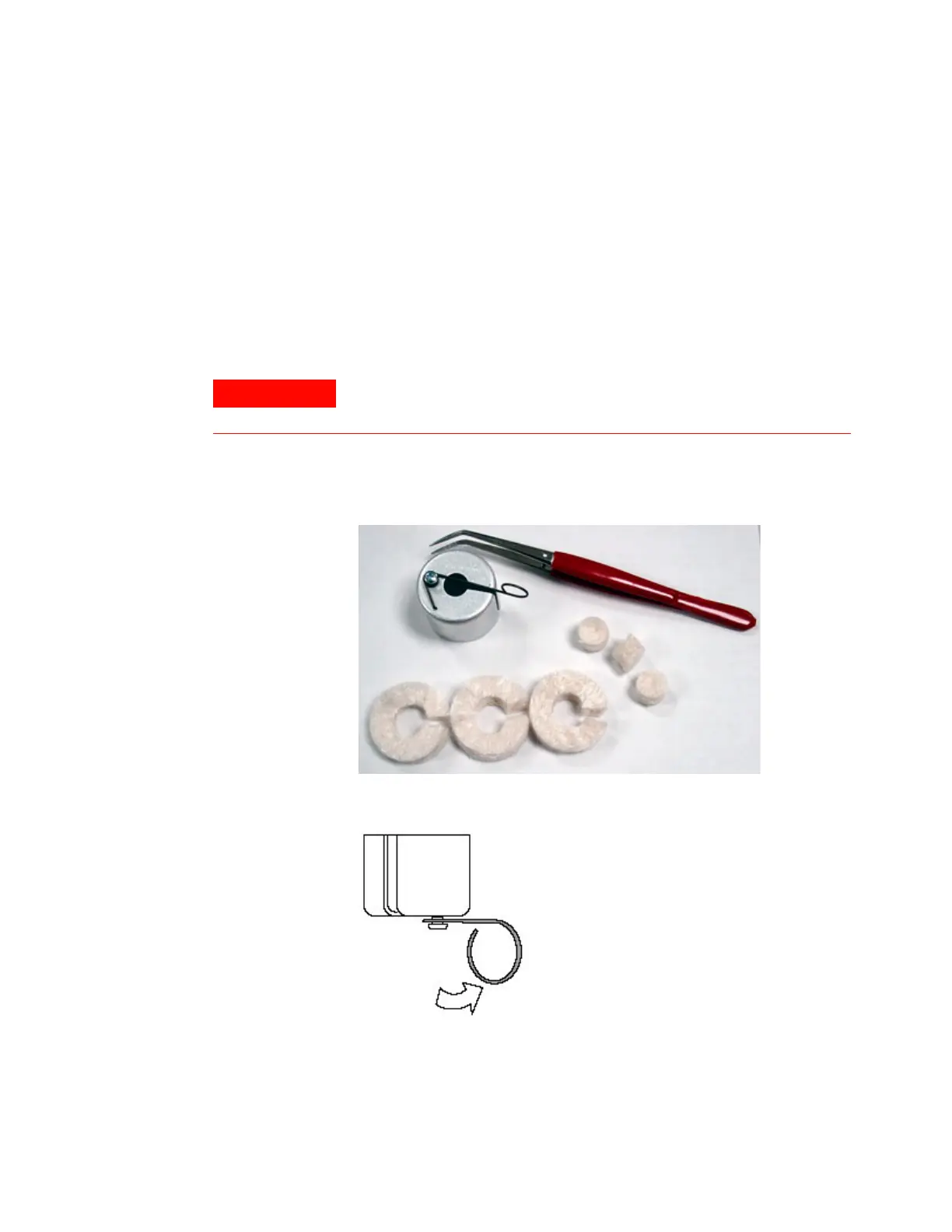

To Install the Insulating Cup for the uECD

1 Gather the following:

• Nut warmer insulation (See “Consumables and Parts

for the uECD” on page 244.)

• Insulation cup assembly

2 Load the GC maintenance method and wait for the GC to

become ready.

3 Install the insulation in the cup. Line up the slots in the

insulation with the slot in the cup.

4 Push the wire spring lever to the right to uncover the

hole.

5 With a capillary column installed to prevent insulation

contamination of the detector, slide the column into the

slot on the insulation cup and place the cup over the

makeup gas adapter.

WARNING

Be careful! The oven and/or detector may be hot enough to cause

burns. If the detector is hot, wear gloves to protect your hands.
