332 Maintaining Your GC

18 Maintaining the PCM

Installing or Replacing Frits in the PCM

To install or replace a frit:

1 Gather the following:

• O- rings, package of 12, 5180- 4181

• Restrictor

• Tweezers

2 Turn off the gas supply to the channel.

3 Select the appropriate frit. For information on selecting

PCM channel frits, refer to the 7890 Series Advanced User

Guide.

4 Remove the screw holding the tubing block with the

output tubing.

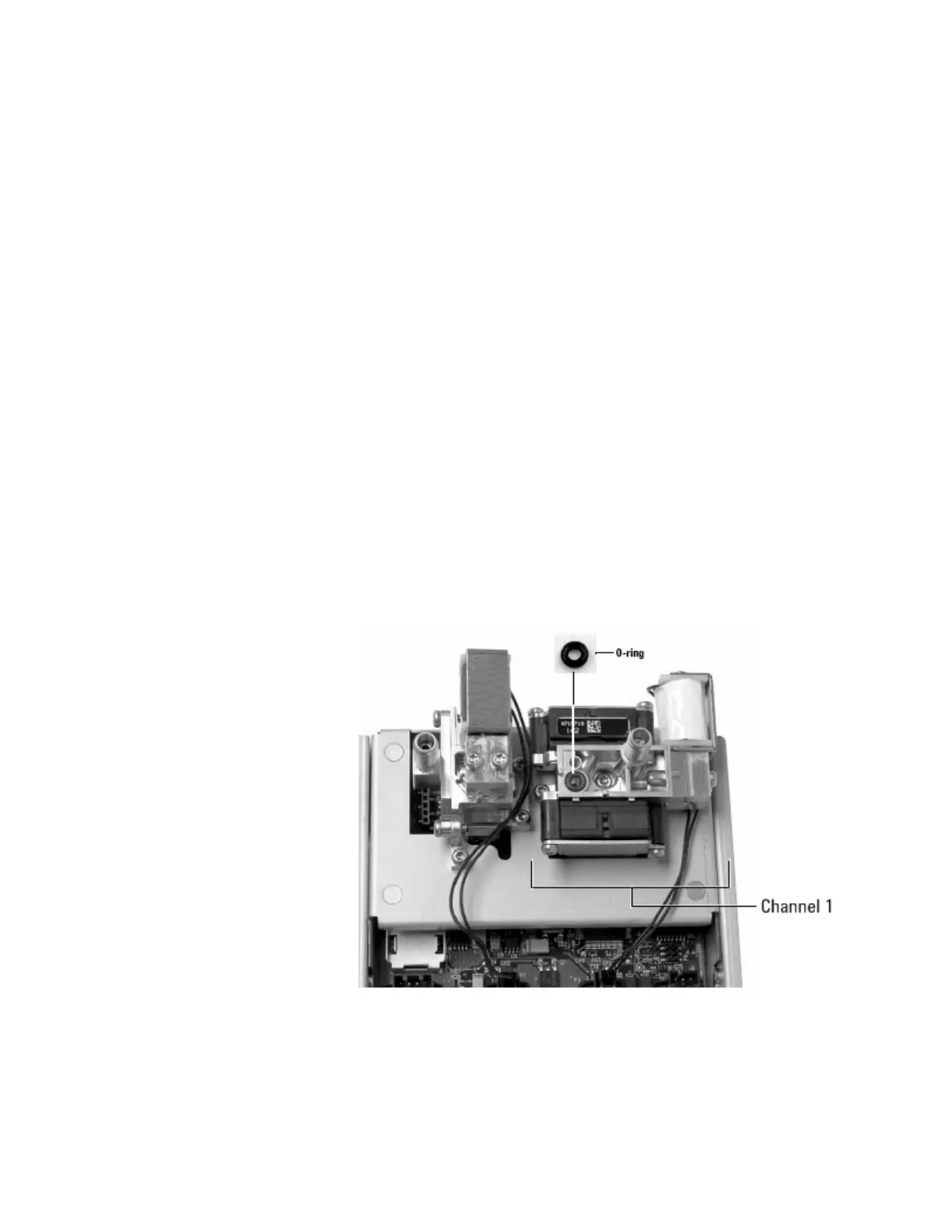

5 Remove the tubing block. Remove the frit and O- ring

using the tweezers. Be careful to avoid scratching the

metal surfaces.

6 Remove the other O- ring as well. Replace it with a new

O- ring.
