Maintaining the FPD

Maintaining Your GC 303

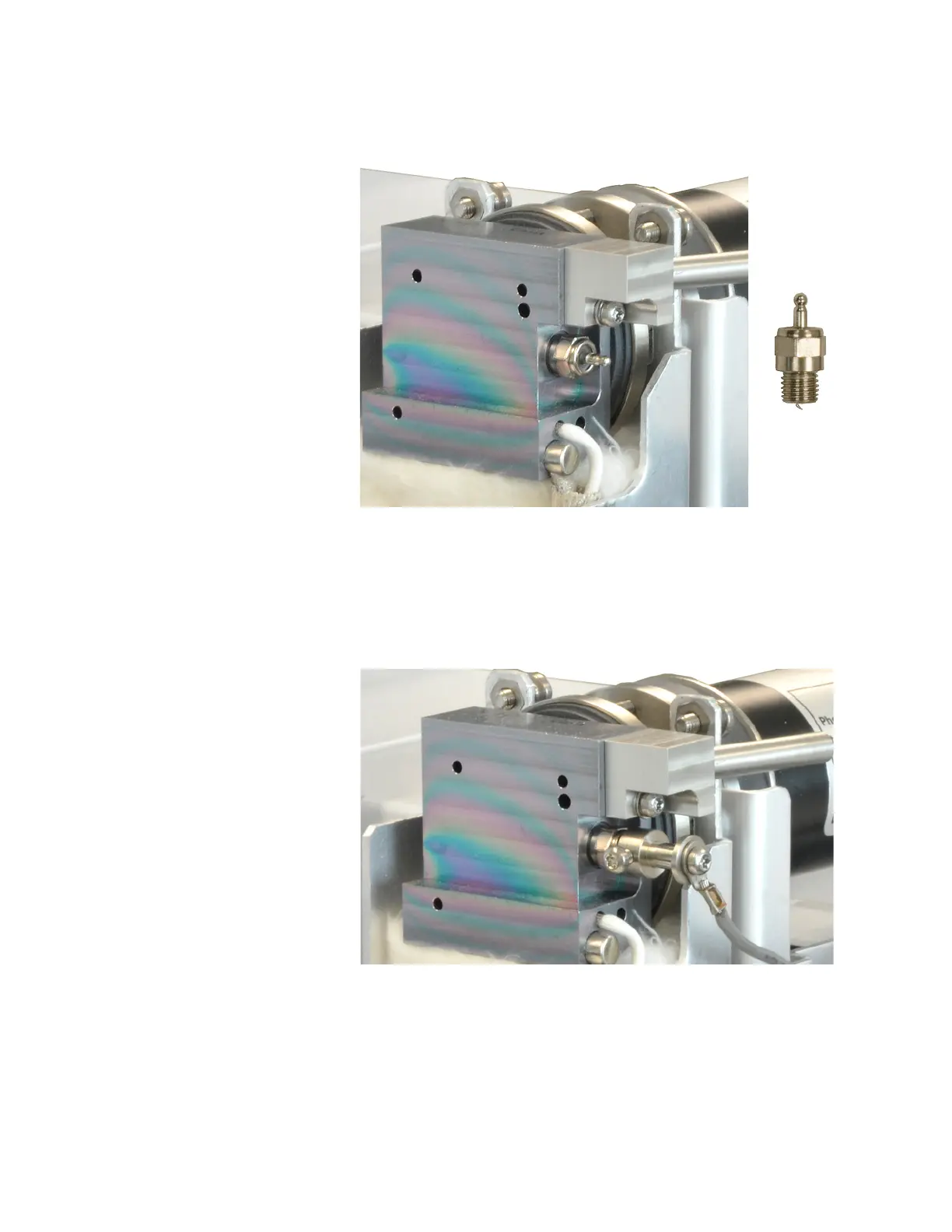

Install the new ignitor assembly and tighten with the nut

driver. Do not overtighten. (If the ignitor comes with a

copper washer, discard the copper washer.)

7 Replace the ignitor collet and cable assembly and tighten

the screw. Align the collet set screw as shown. Do not let

the collet screw touch metal parts, such as the emission

block or PMT bracket (dual wavelength detector).

8 Replace the FPD cover. (See “To Install the FPD

Cover”

on page 304.)

9 Restore the analytical method.

10 Wait 20 min. for the detector to heat up, then ignite the

flame.

11 Reset the EMF counter. See To Reset an EMF Counter in

the Operation Manual.
