Maintaining the G3435A/G3436A FPD 16

Maintaining Your GC 321

Remove the O- ring with tweezers.

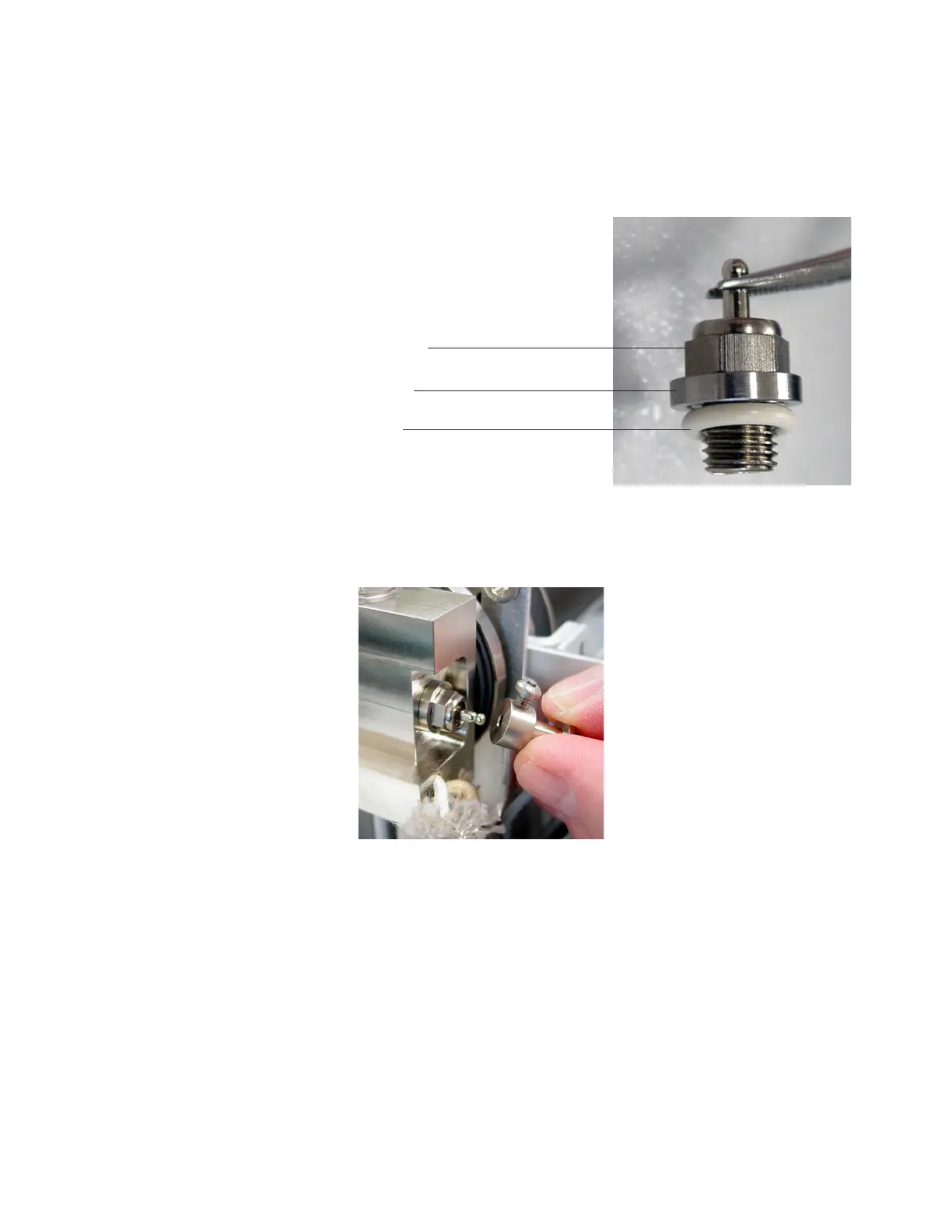

7 Assemble the parts for the new ignitor.

8 Install the new ignitor assembly and tighten with a

wrench. Do not overtighten.

9 Replace the ignitor collar and cable assembly and tighten

the screw.

10 Replace the cover and the vent tube assembly. (See “To

Install the FPD Vent Tube and Cover” on page 322.)

11 Restore the analytical method.

12 Wait 20 minutes for the detector to heat up, then ignite

the flame.

13 Reset the EMF counter. See To Reset an EMF Counter in

the Operation Manual.

Glow plug

Spacer

O-ring
