82 Maintaining Your GC

6 Maintaining the Purged Packed Inlet

Insert the adapter straight into the inlet base as far as

possible.

6 Hold the adapter in this position and finger- tighten the

nut.

7 Tighten an additional 1/4 turn with a wrench.

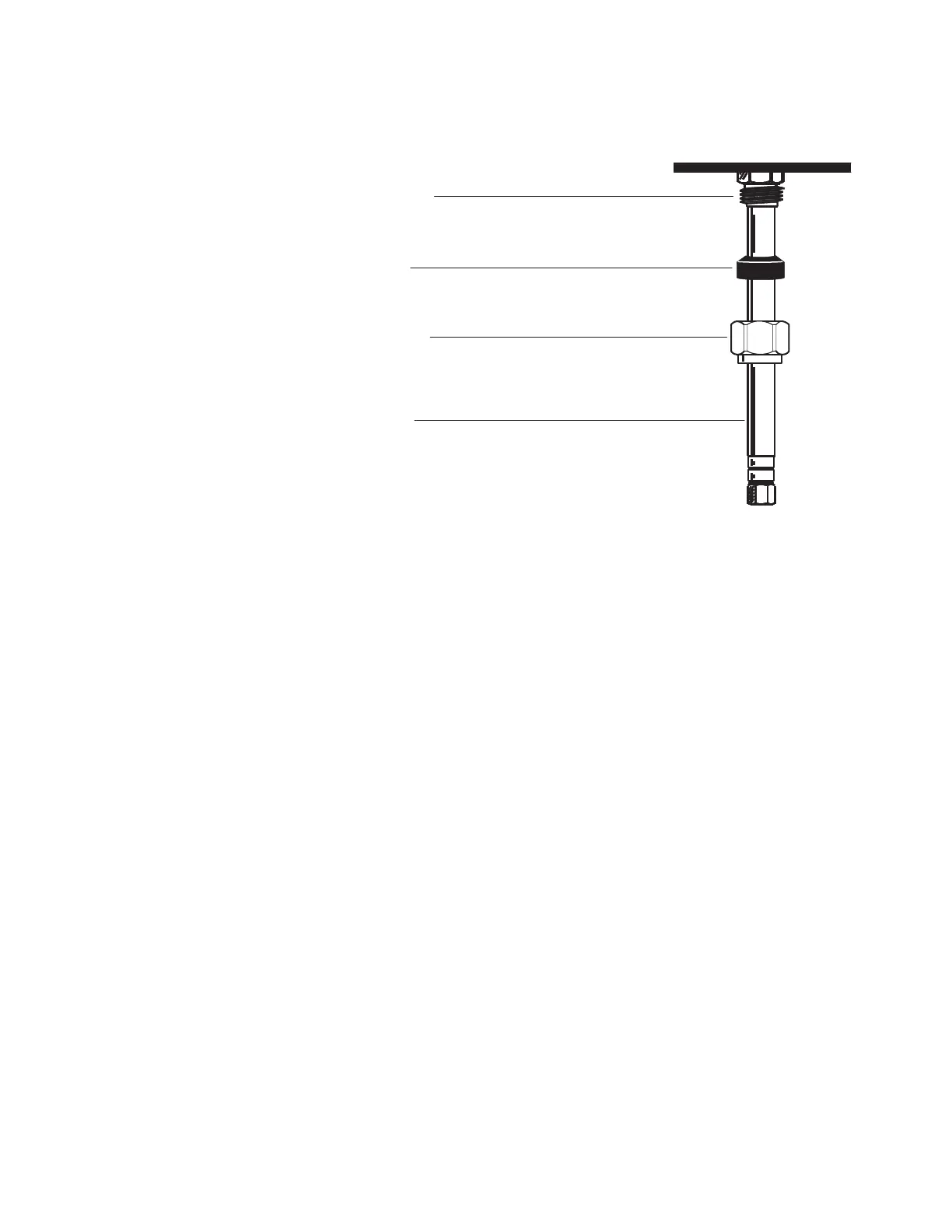

Inlet fitting

Ferrule

Tubing nut

Adapter
