Hand Held ISDN Tester—User Guide

2-6 427869

Connections for line monitoring

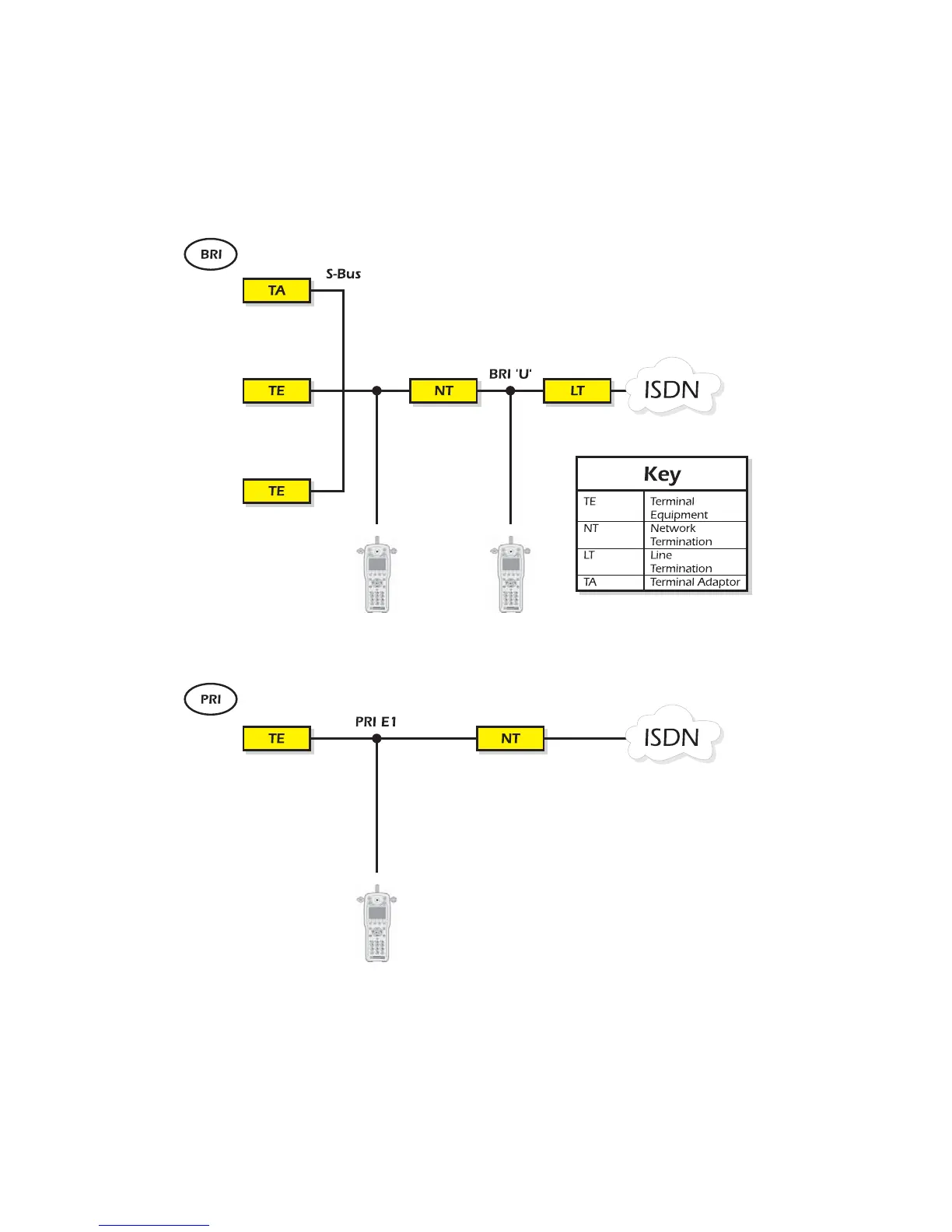

The following diagrams show all the points on the ISDN

where you can connect and test using aurora

Sonata

in Monitor

mode. See Chapter 5 for full details.
