Agilent Technologies auroraSonata

Issue 2 - 07/00 7-3
Capturing & Analysing Protocol Information - Section 1
Decoding in Real
Time
There are two ways to display a decode of protocol events in
real time (i.e. as they occur):
• by viewing the simple decode which aurora
Sonata
displays during test calls and line monitoring sessions.
• by sending the protocol information via the serial
port to a PC or printer, where aurora
Sonata
can
produce a more detailed decode.

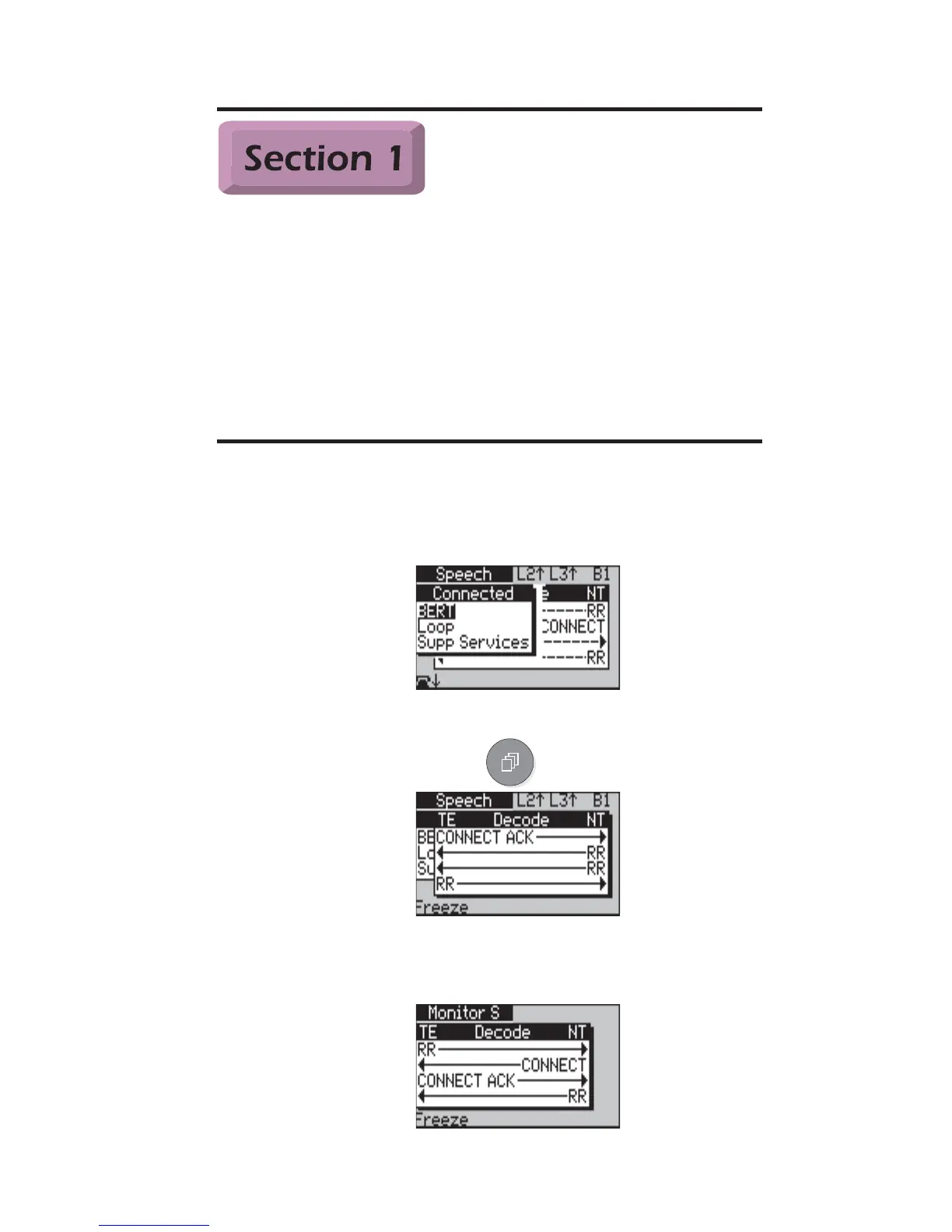

Viewing the simple real-time decode
During calls in Simulation mode, aurora
Sonata
displays a simple
protocol decode in a background window.
To display all of the Decode window for the call:
-1- Press the key.
During a line monitoring session, aurora
Sonata
displays the
simple, real-time decode in the foreground.
