20 1100 Series WS MWS Reference Manual
1 Installing the Sampler
Optimizing the Stack Configuration
If your autosampler is part of a system, you can ensure optimum performance,
ensuring minimum delay volume by installing the following configuration.
Figure 1 and Figure 2 on page 21 show the configuration recommended for the
sampler. Figure 3 on page 22 and Figure 4 on page 23 show the configuration
recommended for the thermostatted sampler.

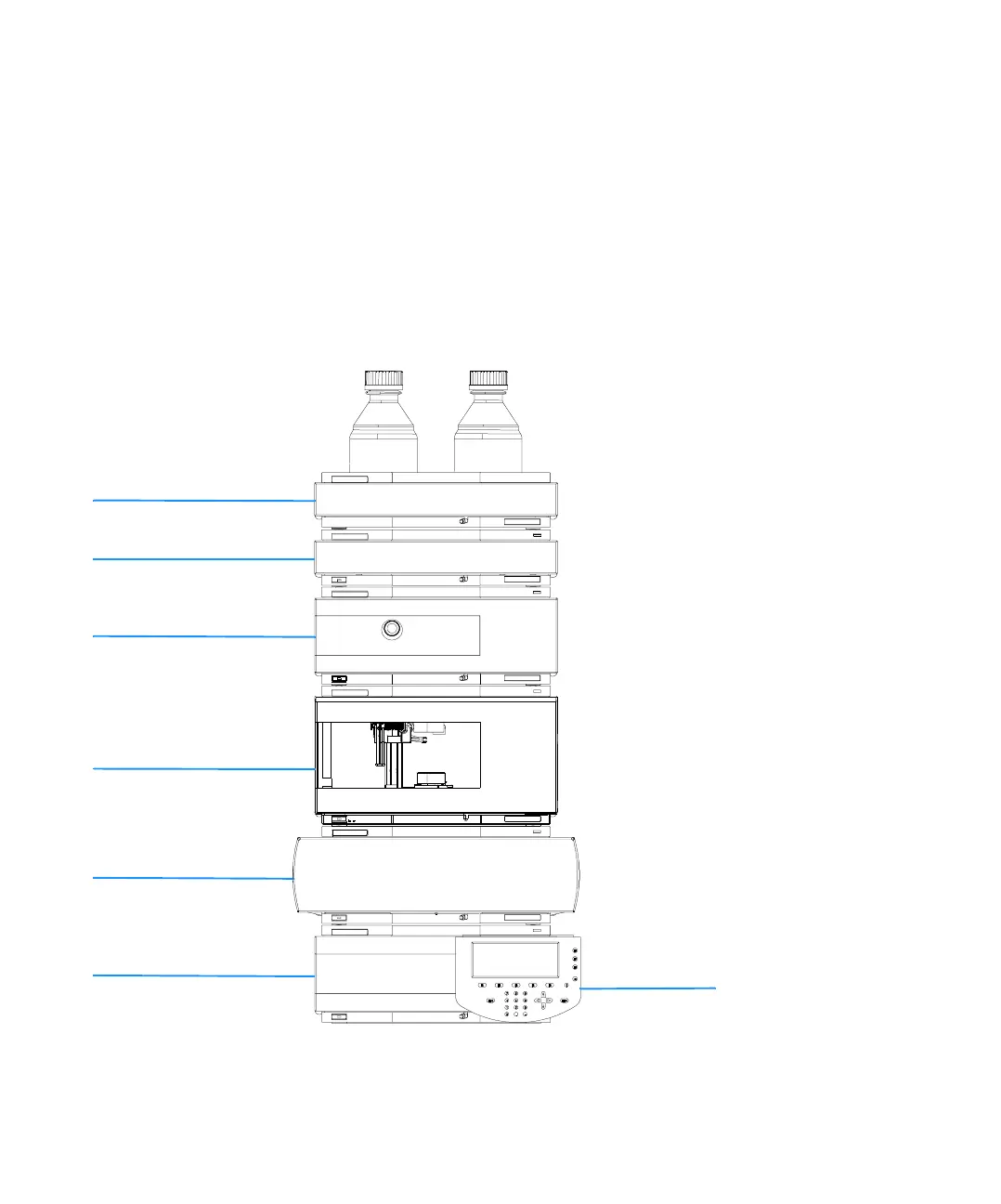

Figure 1 Recommended Stack Configuration - Well-plate Sampler (Front View)
Solvent cabinet
Vacuum degasser
Pump
Column compartment
Well-plate sampler
Detector
Control module
