26 1100 Series WS MWS Reference Manual
1 Installing the Sampler
Installing a Thermostatted Sampler
1 Place the thermostat on the bench.
2 Remove the front cover and route the condensation drain tube to the waste
bottle.
3 Install the LAN interface board in the sampler (if required), see “Interface
Board" on page 129.
4 Remove the adhesive tape which covers the side and front doors.
5 Open the front door and remove the left side door.
6 Remove the transport protection foam.
7 Re-install the corrugated waste tube in the plastic port.
Preparation Locate bench space
Provide power connections
Unpack the sampler and the thermostat
Parts required Sampler and thermostat
Power cord, for the other cables see below and,“Cable Overview" on page 178
ChemStation and/or Control Module G1323B
WARNING
Make sure that the condensation drain tube is always above the liquid level in the
vessel. If the tube is located in liquid the condensed water cannot flow out of the
tube and the outlet is blocked. Any further condensation will then remain in the
instrument. This may damage the instruments electronics.

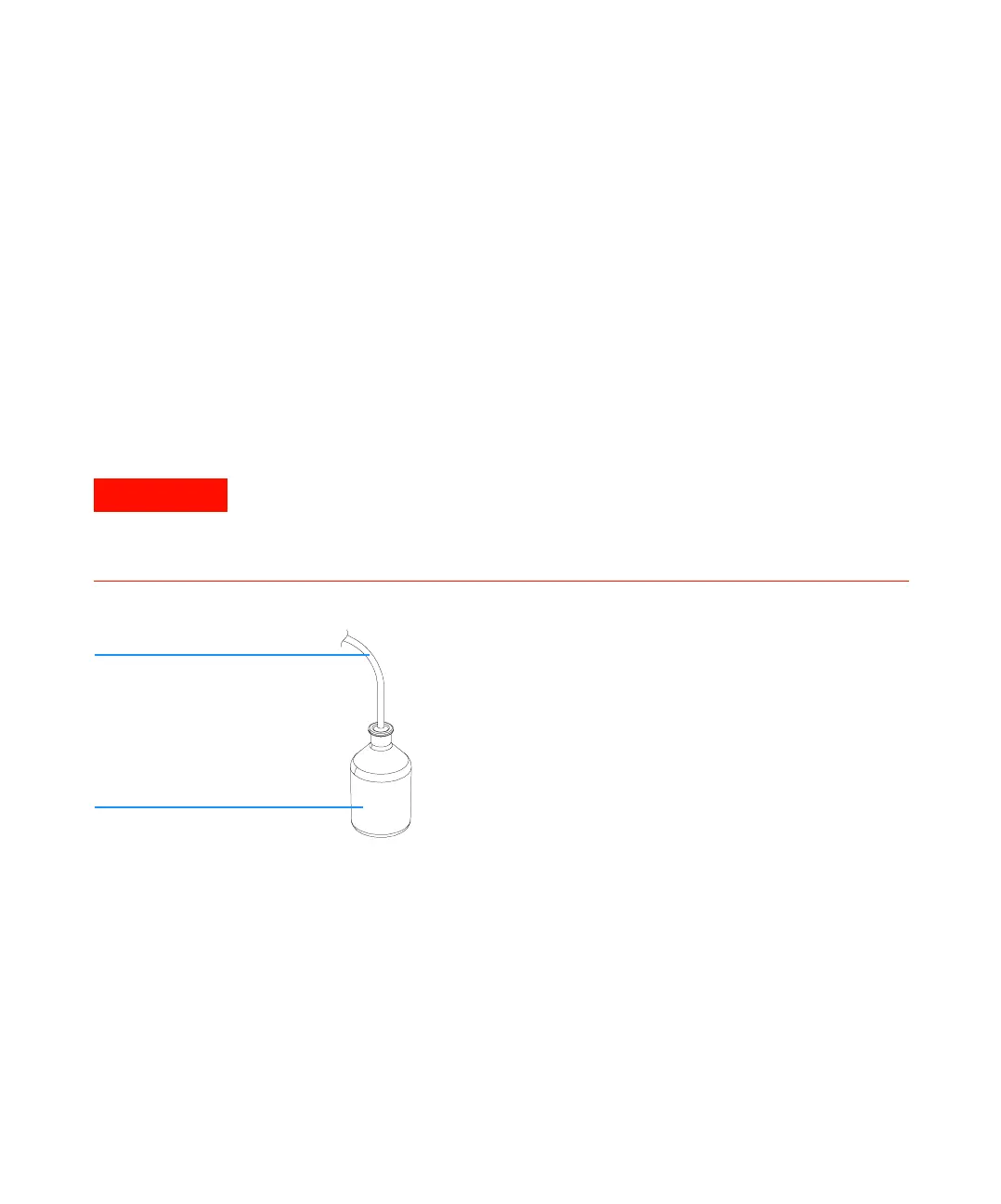

Figure 6 Condensation leak outlet
Condensation drain tube
Waste bottle
