Theory of Operation 7
1100 Series WS MWS Reference Manual 233
Setting the 8-bit Configuration Switch
The 8-bit configuration switch is located next to the GPIB connector. Switch
settings provide configuration parameters for GPIB address, serial
communication protocol and instrument specific initialization procedures.
Switches 1 and 2 define which set of parameters (for example, for GPIB,
RS-232C, and so on) will be changed. Once the change has been completed, the
instrument must be powered up again in order to store the values in the
non-volatile memory.
In the non-volatile memory the parameters are kept, regardless of whether you
turn the instrument off and on again. They will be kept until the same set of
parameters is subsequently changed and power is reset. All other previously
stored configuration settings will still remain in the non-volatile memory.

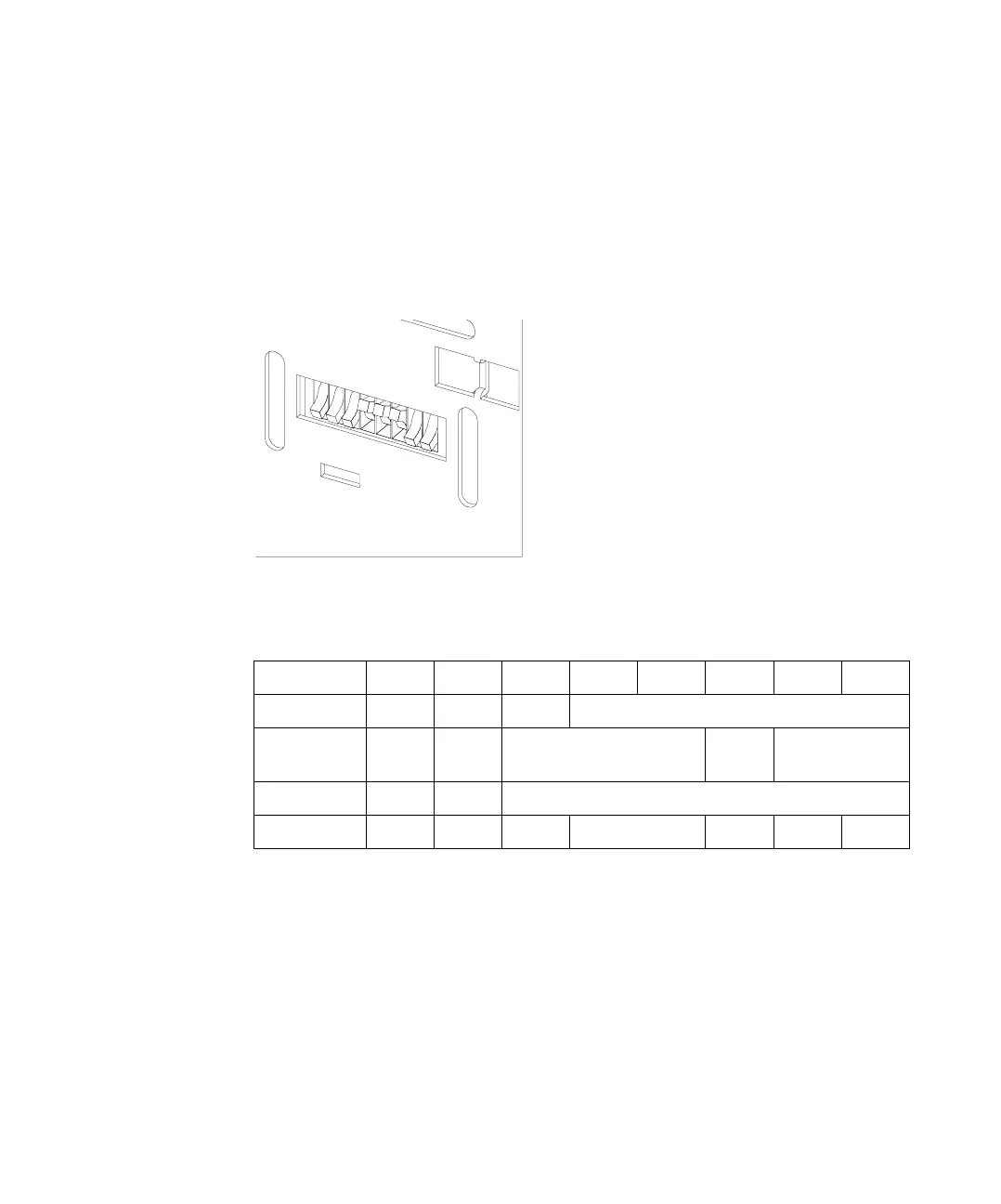

Figure 44 8-bit Configuration Switch
Tabl e 69 8-bit Configuration Switch
Mode Select12345678
GPIB 0 0 GPIB Address
RS-232C 0 1 Baud rate Data
Bits
Parity
Reserved 1 0 Reserved
TEST/BOOT 1 1 RSVD SYS RSVD RSVD FC
1
8
1
0
