9 Maintenance
Assembling the Pump Head
7

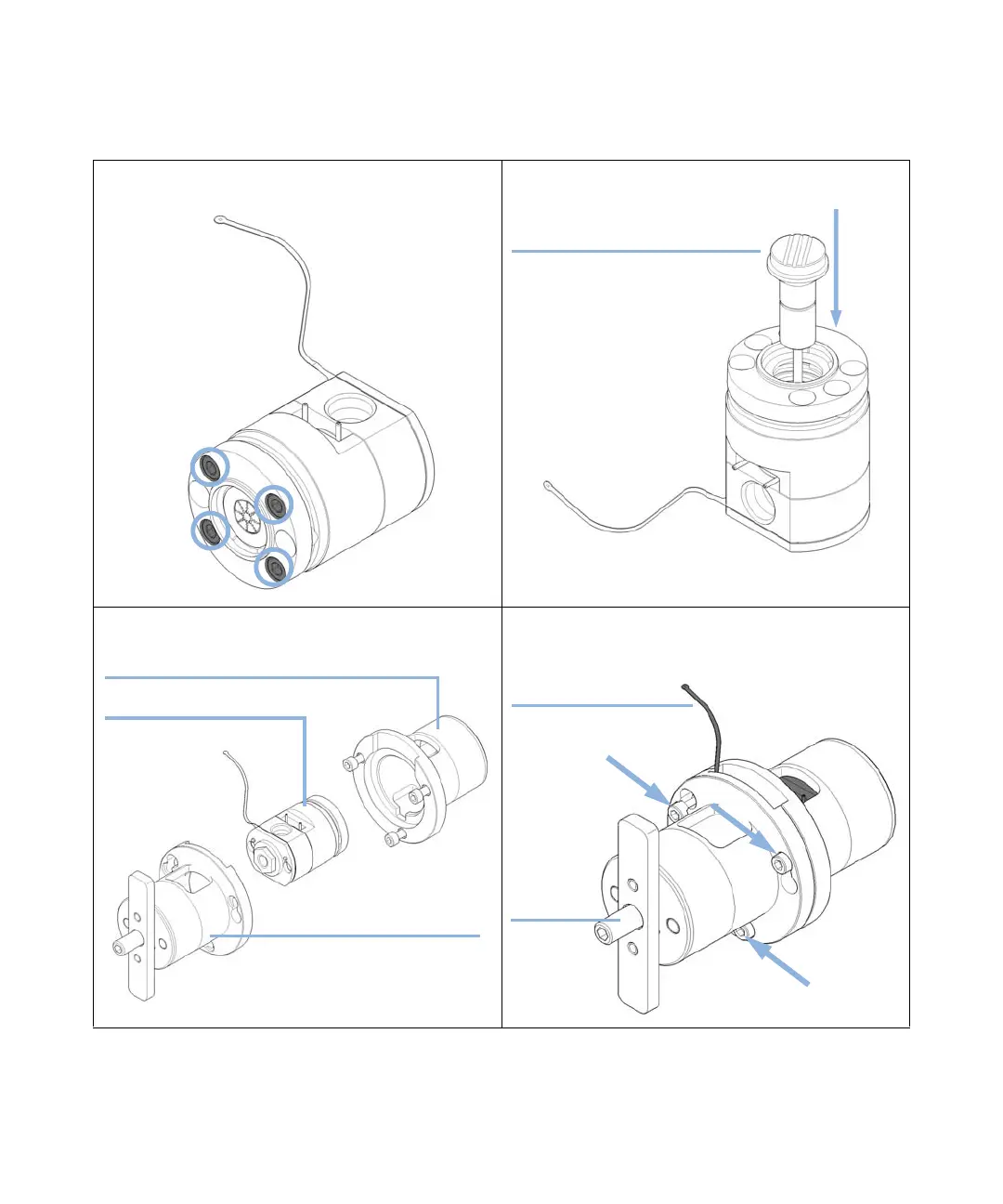

Loosely close the 4 screws at the rear of the pump head.
The screws will be fixed tightly later.
8 Insert the alignment piston of the pump head alignment
tool.
9 Insert the pump head to the pump head alignment tool.
There are openings for the seal wash support ring and
heat exchanger of the secondary pump head.
10 Close the tool by closing the 3 screws at the connection
ring.
Alignment piston
Pump head alignment tool (front)
Pump head (secondary)
Pump head alignment tool (rear)
Heat exchanger capillary
Tool handle
