152 Agilent 1290 Infinity Binary Pump User Manual
9 Maintenance
Assembling the Pump Head
15

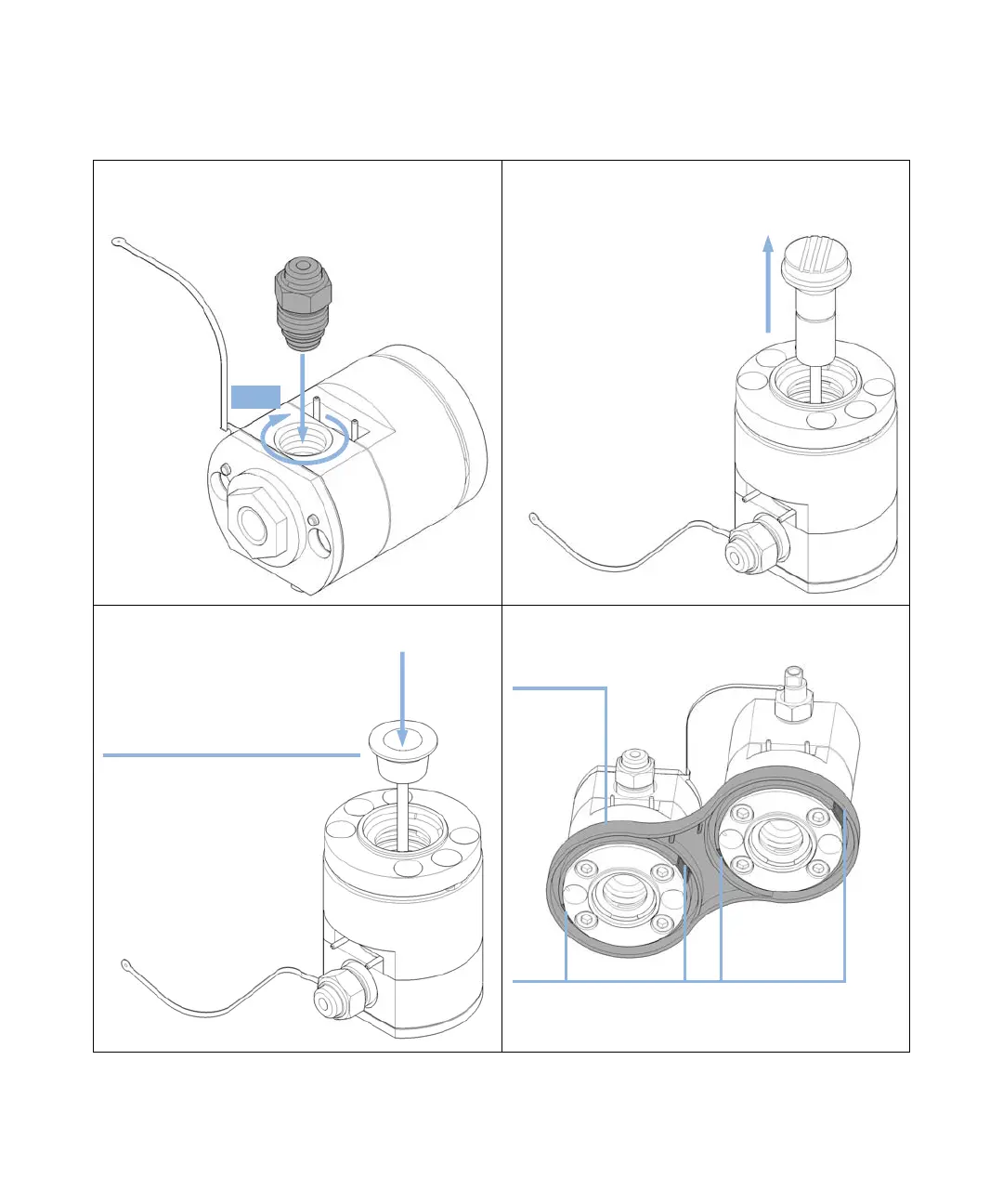

For the secondary pump head, assemble and install the
high pressure filter assembly using the torque wrench
(14 mm hex wrench) set to 16 Nm.
16 Remove the alignment piston.
17 Insert the pump piston. 18 Insert both pump heads to the link plate and make sure
that the clips snap in that fix the pump heads.
16 Nm
Piston
Clips
Link plate
