34410A/11A/L4411A User’s Guide 19
Quick Start 1
To Measure DC Current
Press to select the dc current function.
• Ranges: 100 mA, 1 mA, 10 mA, 100 mA, 1 A, 3 A
• Configurable parameters: INTEGRATION, RANGE, AUTO ZERO, NULL, and NULL VALUE
To Measure AC Current
Press to select the ac current function.
• Ranges: 100 mA, 1 mA, 10 mA, 100 mA, 1 A, 3 A
• AC Technique: true–RMS, ac–coupled
• Configurable parameters: AC FILTER, RANGE, NULL and NULL VALUE

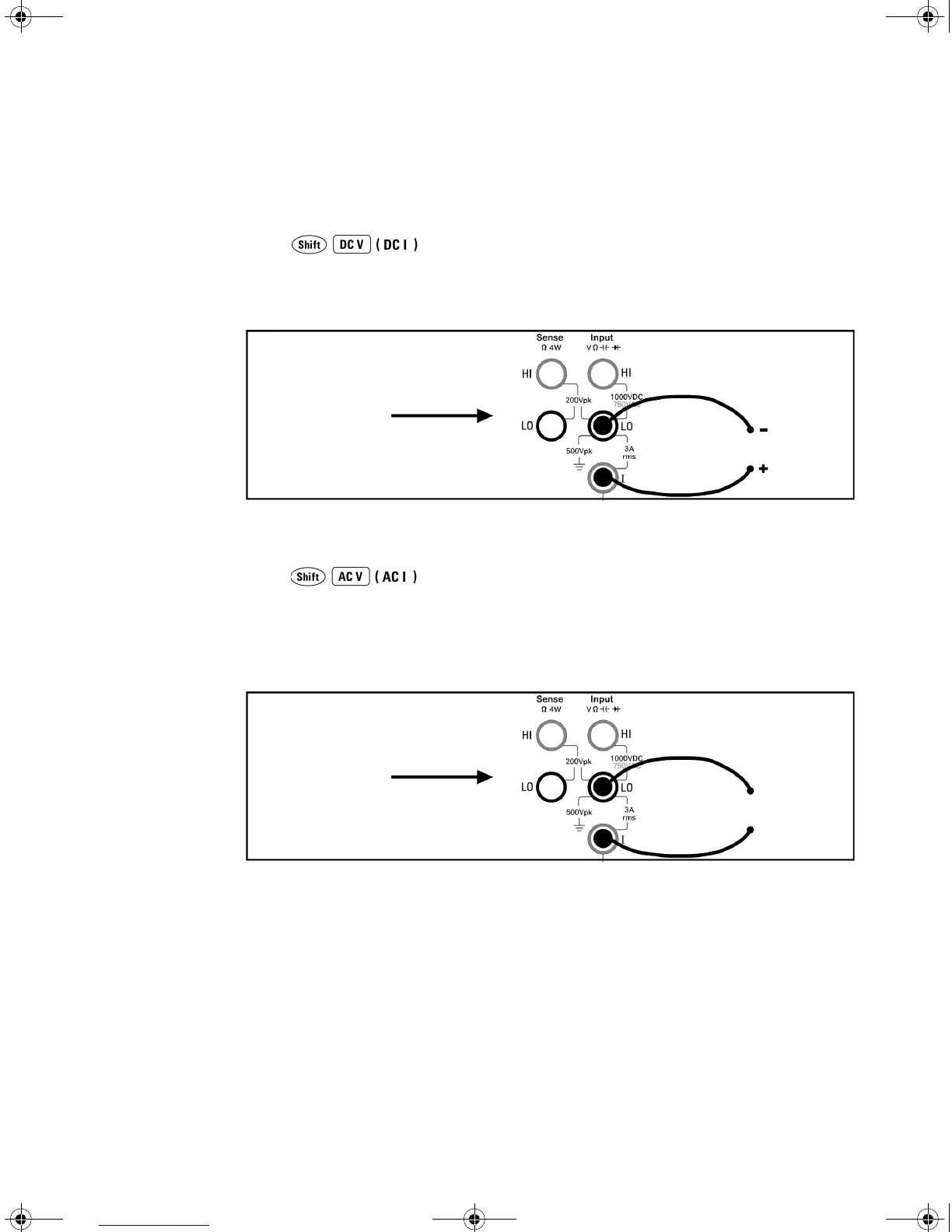

Connect test leads as shown:
DC Current
Connect test leads as shown:
AC Current
UG_ED5.book Page 19 Thursday, March 1, 2012 11:28 AM
