88 U8903A User’s Guide
5Audio Analyzer Measurement Functions
Audio Analyzer
To access the analyzer mode, press on the Mode
panel. Each channel of the U8903A can perform two
measurement functions simultaneously.
To configure the measurement functions, select the active
channel using the arrow keys.
The main menu functions of the analyzer mode are as
follows.
• Function 1
• Function 2
• Analyzer Settings
• Common Settings
The analyzer menu functions are shown in the following
figure.

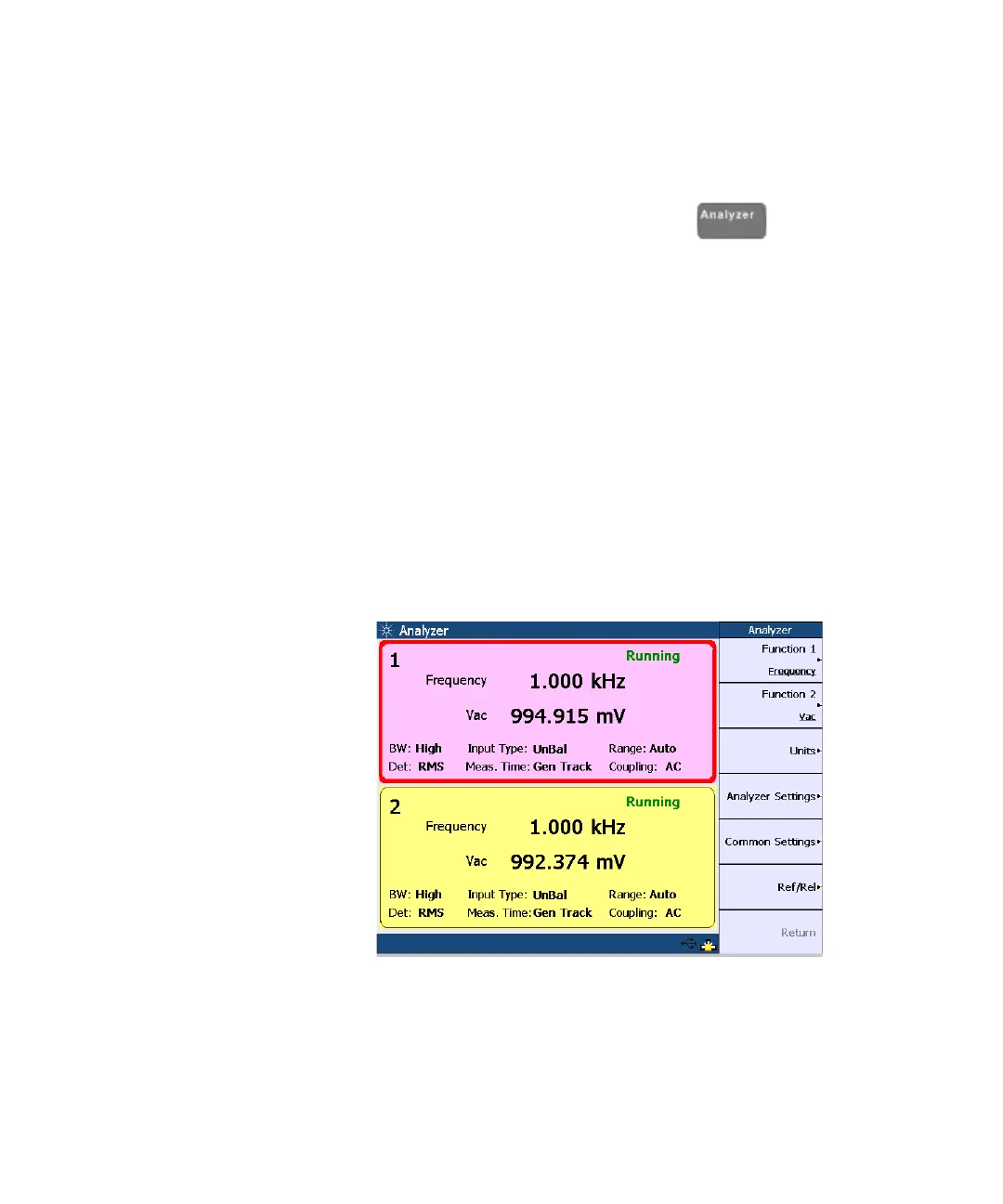

Figure 5-1 Analyzer menu functions
Use the softkeys to configure the measurement functions of
the analyzer mode.
