90 U8903A User’s Guide
5Audio Analyzer Measurement Functions

For Function 2, the following measurement functions can be
selected.
• Frequency
• AC voltage
• DC voltage
• SNR
• Noise Level
• SINAD
• THD + N Ratio
• THD + N Level
• Crosstalk (channel driven/channel measured)
• SMPTE IMD
• DFD IEC 60268 2nd/3rd order
• DFD IEC 60118 2nd/3rd order
• Phase
With the exception of phase and crosstalk, individual
channels can be configured to measure different functions.
The measurement functions of Function 2 are shown as
follows.

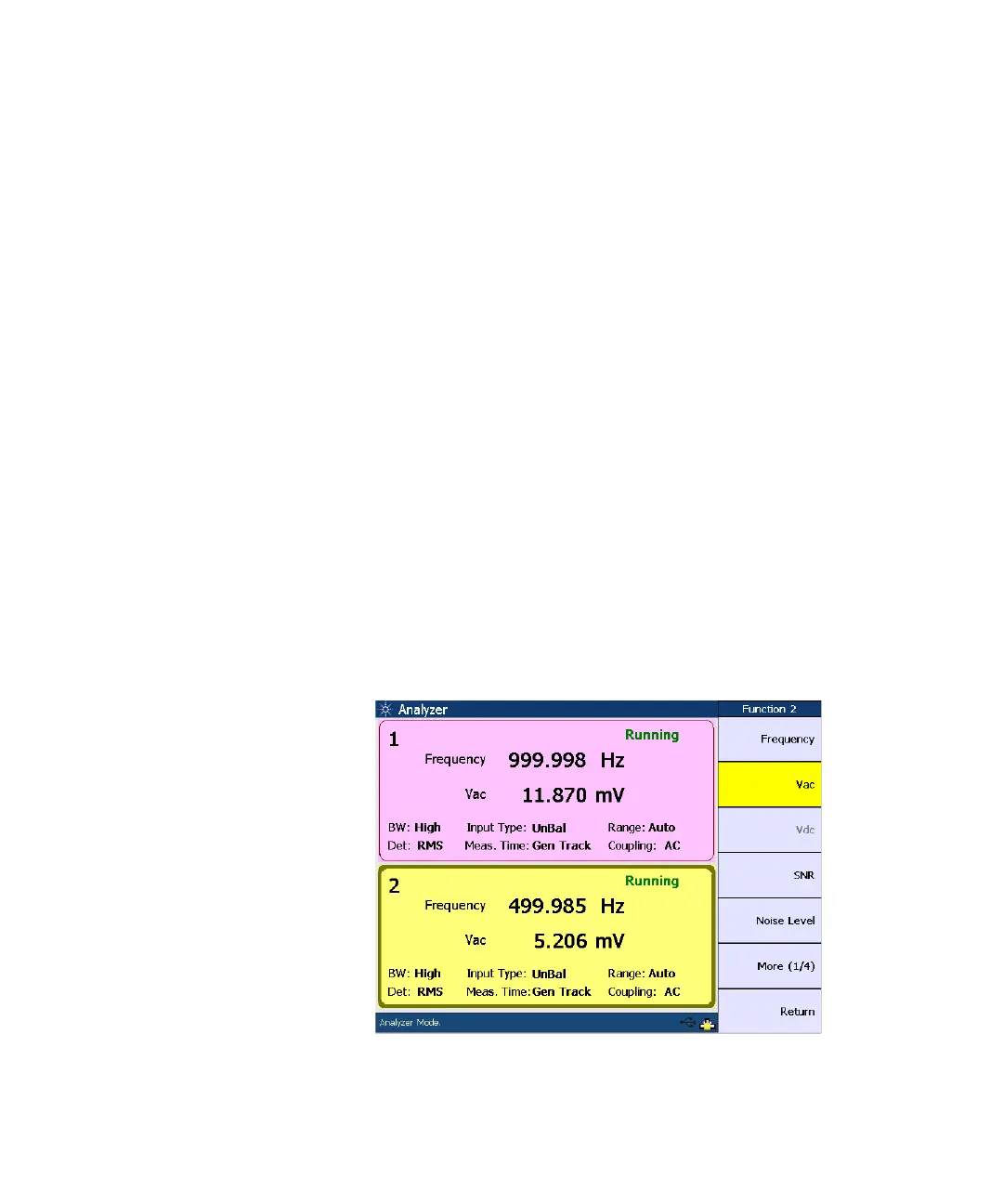

Figure 5-3 Function 2 selection first page
